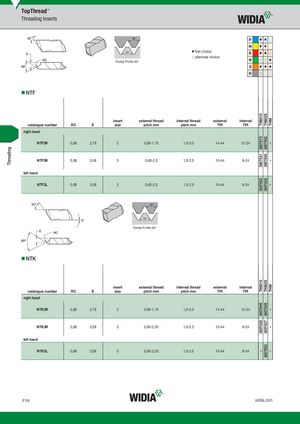

Threading TN6010360767336075313607652TN601036076463607528– TN6025360785236078303607832TN6025360783636078273607853 THM–––THM––– TopThread™ Threading Inserts 60° P ⅷ ⅷ M ⅷ ⅷ 60° ⅷ first choice K ⅷ ⅷ ࠗ ࠗ alternate choice Partial Profile 60° N ࠗ ࠗ ⅷ S ⅷ ⅷ ⅷ H ࠗ „NTF insert external thread internal thread external internal catalogue number RC E size pitch mm pitch mm TPI TPI right hand NTF2R 0,08 2,79 2 0,60-1,75 1,0-2,0 14-44 12-24 NTF3R 0,08 3,58 3 0,60-2,5 1,0-2,5 10-44 9-24 left hand NTF3L 0,08 3,58 3 0,60-2,5 1,0-2,5 10-44 9-24 60° 60° Partial Profile 60° „NTK insert external thread internal thread external internal catalogue number RC E size pitch mm pitch mm TPI TPI right hand NTK2R 0,08 2,79 2 0,60-1,75 1,0-2,0 14-44 12-24 NTK3R 0,08 3,58 3 0,60-2,50 1,0-2,5 10-44 9-24 left hand NTK3L 0,08 3,58 3 0,60-2,50 1,0-2,5 10-44 9-24 F16 widia.com
