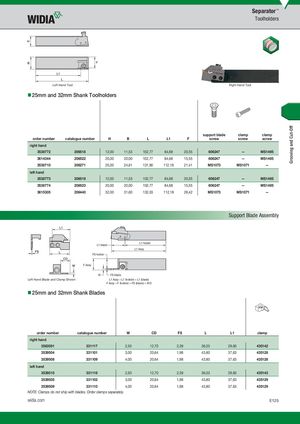

Grooving and Cut-Off Separator™ Toolholders Left Hand Tool Right Hand Tool 25mm and 32mm Shank Toolholders support blade clamp clamp order number catalogue number H B L L1 F screw screw screw right hand 3538772 206518 12,00 11,53 102,77 84,68 20,55 606247 — MS1495 3614344 206522 20,00 20,00 102,77 84,68 15,55 606247 — MS1495 3538710 206271 25,00 24,61 131,90 112,16 21,41 MS1073 MS1071 — left hand 3538773 206519 12,00 11,53 102,77 84,68 20,55 606247 — MS1495 3538774 206523 20,00 20,00 102,77 84,68 15,55 606247 — MS1495 3615305 206440 32,00 31,60 132,03 112,18 28,42 MS1073 MS1071 — Support Blade Assembly L1 blade L1 holder L1 Assy FS holder F Assy W FS blade Left Hand Blade and Clamp Shown L1 Assy = L1 (holder) + L1 (blade) F Assy = F (holder) + FS (blade) + W/2 25mm and 32mm Shank Blades order number catalogue number W CD FS L L1 clamp right hand 3563591 331117 2,50 12,70 2,39 36,03 29,60 435142 3539504 331101 3,00 20,64 1,98 43,80 37,63 435128 3539508 331109 4,00 20,64 1,98 43,80 37,63 435128 left hand 3539510 331118 2,50 12,70 2,39 36,03 29,60 435143 3539505 331102 3,00 20,64 1,98 43,80 37,63 435129 3539509 331110 4,00 20,64 1,98 43,80 37,63 435129 NOTE: Clamps do not ship with blades. Order clamps separately. widia.com E125
