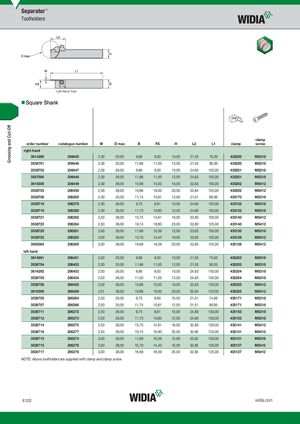

Grooving and Cut-Off Separator™ Toolholders Left Hand Tool „Square Shank clamp order number catalogue number W D max B FS H L2 L1 clamp screw right hand 3614290 206445 2,00 20,00 9,86 9,00 10,00 21,55 75,00 435200 MS318 3538751 206446 2,00 20,00 11,86 11,00 12,00 21,55 90,00 435200 MS318 3538752 206447 2,00 26,00 9,86 9,00 10,00 24,83 150,00 435201 MS318 3587590 206448 2,00 26,00 11,86 11,00 12,00 24,83 150,00 435201 MS318 3615308 206449 2,00 38,00 15,86 15,00 16,00 32,83 100,00 435202 MS412 3538753 206450 2,00 38,00 19,86 19,00 20,00 32,84 125,00 435202 MS412 3538706 206265 2,50 20,00 11,74 10,81 12,00 21,51 89,95 435170 MS318 3538718 206279 2,50 26,00 9,75 8,81 10,00 24,80 150,00 435152 MS318 3538719 206280 2,50 26,00 11,73 10,80 12,00 24,80 150,00 435152 MS318 3538721 206282 2,50 38,00 15,75 14,81 16,00 32,80 100,00 435140 MS412 3538723 206284 2,50 38,00 19,74 18,80 20,00 32,80 125,00 435140 MS412 3538720 206281 3,00 26,00 11,68 10,39 12,00 23,62 150,00 435130 MS318 3538722 206283 3,00 38,00 15,70 14,40 16,00 32,85 100,00 435126 MS412 3565364 206285 3,00 38,00 19,68 18,39 20,00 32,85 125,00 435126 MS412 left hand 3614291 206451 2,00 20,00 9,86 9,00 10,00 21,55 75,00 435203 MS318 3538754 206452 2,00 20,00 11,86 11,00 12,00 21,55 90,00 435203 MS318 3614292 206453 2,00 26,00 9,86 9,00 10,00 24,83 150,00 435204 MS318 3538755 206454 2,00 26,00 11,00 11,00 12,00 24,83 150,00 435204 MS318 3538756 206455 2,00 38,00 15,86 15,00 16,00 32,83 100,00 435205 MS412 3615309 206456 2,01 38,00 19,86 19,00 20,00 32,84 125,00 435205 MS412 3538705 206264 2,50 20,00 9,75 8,80 10,00 21,51 74,96 435171 MS318 3538707 206266 2,50 20,00 11,74 10,81 12,00 21,51 89,95 435171 MS318 3538711 206272 2,50 26,00 9,75 8,81 10,00 24,80 150,00 435153 MS318 3538712 206273 2,50 26,00 11,73 10,80 12,00 24,80 150,00 435153 MS318 3538714 206275 2,50 38,00 15,75 14,81 16,00 32,80 100,00 435141 MS412 3538716 206277 2,50 38,00 19,74 18,80 20,00 32,80 125,00 435141 MS412 3538713 206274 3,00 26,00 11,68 10,39 12,00 23,62 150,00 435131 MS318 3538715 206276 3,00 38,00 15,70 14,40 16,00 32,85 100,00 435127 MS412 3538717 206278 3,00 38,00 19,68 18,39 20,00 32,85 125,00 435127 MS412 NOTE: Above toolholders are supplied with clamp and clamp screw. E122 widia.com
