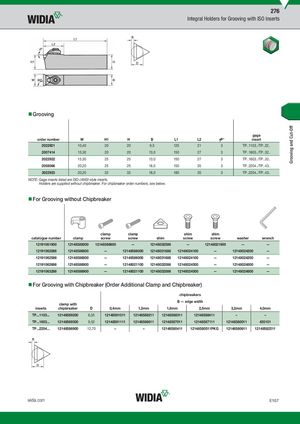

Grooving and Cut-Off 276 Integral Holders for Grooving with ISO Inserts „Grooving gage order number W H1 H B L1 L2 aP° insert 2022921 10,40 20 20 9,5 125 21 3 TP..1103../TP..22.. 2007414 15,30 20 20 13,0 150 27 3 TP..1603../TP..32.. 2022922 15,30 25 25 13,0 150 27 3 TP..1603../TP..32.. 2058066 20,20 25 25 18,0 150 35 3 TP..2204../TP..43.. 2022923 20,20 32 32 18,0 180 35 3 TP..2204../TP..43.. NOTE: Gage inserts listed are ISO-/ANSI-style inserts. Holders are supplied without chipbreaker. For chipbreaker order numbers, see below. „For Grooving without Chipbreaker clamp clamp shim shim catalogue number clamp screw screw shim screw screw washer wrench 12191061900 12148589200 12148589800 — 12148032586 — 12148021900 — — 12191062086 12148586800 — 12148586000 12148031686 12148024100 — 12148024200 — 12191062586 12148586800 — 12148586000 12148031686 12148024100 — 12148024200 — 12191062686 12148586900 — 12148021100 12148032086 12148024500 — 12148024800 — 12191063286 12148586900 — 12148021100 12148032086 12148024500 — 12148024800 — „For Grooving with Chipbreaker (Order Additional Clamp and Chipbreaker) chipbreakers B — edge width clamp with inserts chipbreaker D 0,4mm 1,2mm 1,8mm 2,5mm 3,2mm 4,0mm TP...1103... 12148589200 6,35 12148591011 12148588211 12148588311 12148588411 – – TP...1603... 12148589300 9,52 12148591111 12148586611 12148587011 12148587111 12148580011 435101 TP...2204... 12148586900 12,70 – – 12148580411 12148580511PKG 12148580611 12148582511 widia.com E107
