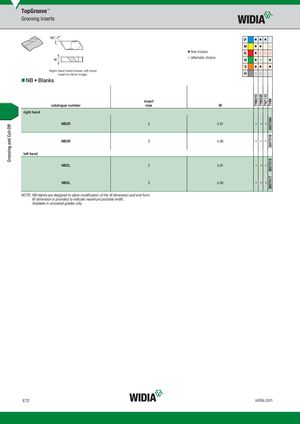

Grooving and Cut-Off TN6010–––– TN6025–––– TN7110–––– THM3607064360701936070163607017 TopGroove™ Grooving Inserts P ⅷ ⅷ ⅷ M ⅷ ⅷ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ࠗ alternate choice N ⅷ ࠗ ⅷ S ⅷ ⅷ ⅷ Right-hand insert shown; left-hand insert is mirror image. H ࠗ ࠗ „NB • Blanks insert catalogue number size W right hand NB2R 2 3,81 NB3R 3 4,95 left hand NB2L 2 3,81 NB3L 3 4,95 NOTE: NB blanks are designed to allow modification of the W dimension and end form. W dimension is provided to indicate maximum possible width. Available in uncoated grades only. E72 widia.com
