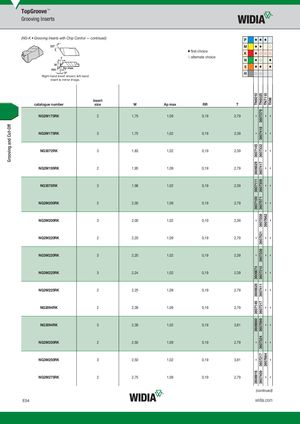

Grooving and Cut-Off TN6010––3607145360682936071113607100–––3606674360682836071463606660––3606916 TN60253607379360741836073323607417360730936070713607208360752136073363607310360741136073173607069360732436072173607409 TN7110––––––3607662–––––––3607664– THM–––––––––––––––– TopGroove™ Grooving Inserts (NG-K • Grooving Inserts with Chip Control — continued) P ⅷ ⅷ ⅷ M ⅷ ⅷ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ࠗ alternate choice N ⅷ ࠗ ⅷ S ⅷ ⅷ ⅷ H ࠗ ࠗ Right-hand insert shown; left-hand insert is mirror image. insert catalogue number size W Ap max RR T NG2M175RK 2 1,75 1,09 0,19 2,79 NG3M175RK 3 1,75 1,02 0,19 2,39 NG3072RK 3 1,83 1,02 0,19 2,39 NG2M195RK 2 1,95 1,09 0,19 2,79 NG3078RK 3 1,98 1,02 0,19 2,39 NG2M200RK 2 2,00 1,09 0,19 2,79 NG3M200RK 3 2,00 1,02 0,19 2,39 NG2M220RK 2 2,20 1,09 0,19 2,79 NG3M220RK 3 2,20 1,02 0,19 2,39 NG3M225RK 3 2,24 1,02 0,19 2,39 NG2M225RK 2 2,25 1,09 0,19 2,79 NG2094RK 2 2,39 1,09 0,19 2,79 NG3094RK 3 2,39 1,02 0,19 3,81 NG2M250RK 2 2,50 1,09 0,19 2,79 NG3M250RK 3 2,50 1,02 0,19 3,81 NG2M275RK 2 2,75 1,09 0,19 2,79 (continued) E54 widia.com
