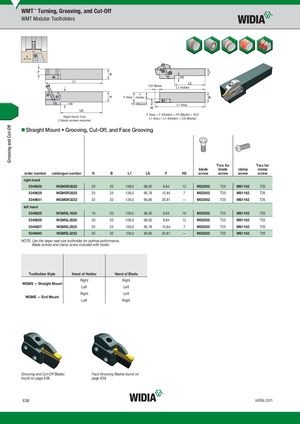

Grooving and Cut-Off WMT™ Turning, Grooving, and Cut-Off WMT Modular Toolholders CD Blade L1 Holder F F Assy Holder FS (Blade) L1 Assy F Assy = F (Holder) + FS (Blade) + W/2 Right Hand Tool2 blade screws required L1 Assy = L1 (Holder) + CD (Blade) „Straight Mount • Grooving, Cut-Off, and Face Grooving Torx for Torx for blade blade clamp clamp order number catalogue number H B L1 LS F H3 screw screw screw screw right hand 5349628 WGMSR2020 20 20 108,0 68,00 8,84 12 MS2002 T25 MS1162 T25 5349629 WGMSR2525 25 25 126,0 95,78 13,84 7 MS2002 T25 MS1162 T25 5349641 WGMSR3232 32 32 126,0 69,85 20,81 — MS2002 T25 MS1162 T25 left hand 5349625 WGMSL1620 16 20 108,0 68,00 8,84 16 MS2002 T25 MS1162 T25 5349626 WGMSL2020 20 20 108,0 68,00 8,84 12 MS2002 T25 MS1162 T25 5349627 WGMSL2525 25 25 126,0 95,78 13,84 7 MS2002 T25 MS1162 T25 NOTE5:3U49se64th0e larger seWatGsMizeStLo3o2lh3o2lder for op3ti2mal perform32ance. 126,0 69,85 20,81 — MS2002 T25 MS1162 T25 NOTE: Use the larger seat size toolholder for optimal performance. Blade screws and clamp screw included with holder. Toolholder Style Hand of Holder Hand of Blade Right Right WGMS — Straight Mount Left Left Right Left WGME — End Mount Left Right Grooving and Cut-Off Blades Face Grooving Blades found on found on page E38. page E39. E36 widia.com
