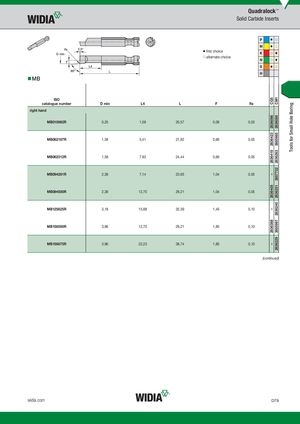

CG5283609828364232836418–2836405–2836388– CM128360853885985283626338577322836251283624038859972836229 Tools for Small Hole Boring Quadralock™ Solid Carbide Inserts P ⅷ ࠗ M ⅷ ࠗ ⅷ first choice K ࠗ ⅷ ࠗ alternate choice N ࠗ ⅷ S ⅷ ࠗ H „MB ISO catalogue number D min L4 L F R¡ right hand MB010062R 0,25 1,58 20,57 0,09 0,03 MB062187R 1,58 5,41 21,92 0,66 0,05 MB062312R 1,58 7,93 24,44 0,66 0,05 MB094281R 2,39 7,14 23,65 1,04 0,05 MB094500R 2,39 12,70 29,21 1,04 0,05 MB125625R 3,18 15,88 32,39 1,45 0,10 MB156500R 3,96 12,70 29,21 1,85 0,10 MB156875R 3,96 22,23 38,74 1,85 0,10 (continued) widia.com D79
