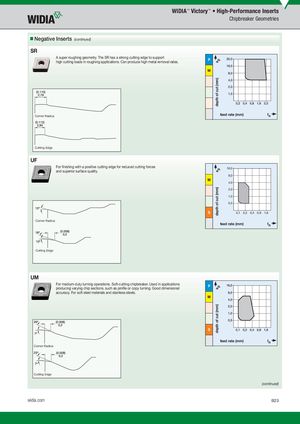

apdepth of cut (mm)apdepth of cut (mm)apdepth of cut (mm) WIDIA™ Victory™ • High-Performance Inserts Chipbreaker Geometries „Negative Inserts (continued) SR A super roughing geometry. The SR has a strong cutting edge to supporthigh cutting loads in roughing applications. Can produce high metal removal rates.P M Corner Radius feed rate (mm) fn Cutting Edge UF For finishing with a positive cutting edge for reduced cutting forces 16,0 and superior surface quality. 8,0 M 4,0 2,0 1,0 0,5 S 0,1 0,2 0,4 0,8 1,6 Corner Radius feed rate (mm) fn Cutting Edge UM For medium-duty turning operations. Soft-cutting chipbreaker. Used in applicationsproducing varying chip sections, such as profile or copy turning. Good dimensionalP accuracy. For soft steel materials and stainless steels. M S feed rate (mm) fn Corner Radius Cutting Edge (continued) widia.com B23
