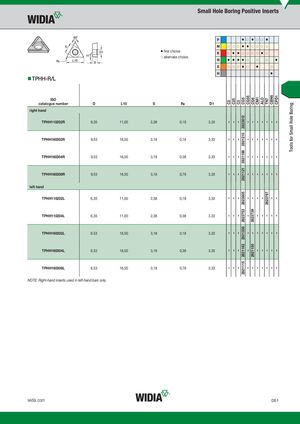

C2––––––––– C25––––––––– C3––––––––– CG5282381228212132821168282112128238052823753282120828211622821115 CG55––––––––– CG6–––––2823739–2821150– CM1––––––––– ALO––––––––– TN7––––2823767–––– CBN6––––––––– CPD1––––––––– Tools for Small Hole Boring Small Hole Boring Positive Inserts P ⅷ ࠗ ⅷ ࠗ ࠗ ⅷ M ࠗ ࠗ ࠗ ⅷ ⅷ ࠗ ࠗ ࠗ ࠗ ⅷ first choice K ࠗ ⅷ ⅷ ࠗ ࠗ ࠗ ࠗ ⅷ ࠗ ࠗ alternate choice N ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ⅷ S ࠗ ࠗ ࠗ ⅷ ࠗ ⅷ ࠗ H ⅷ „TPHH-R/L ISO catalogue number D L10 S R¡ D1 right hand TPHH110202R 6,35 11,00 2,38 0,18 3,33 TPHH160302R 9,53 16,50 3,18 0,18 3,33 TPHH160304R 9,53 16,50 3,18 0,38 3,33 TPHH160308R 9,53 16,50 3,18 0,79 3,33 left hand TPHH110202L 6,35 11,00 2,38 0,18 3,33 TPHH110204L 6,35 11,00 2,38 0,38 3,33 TPHH160302L 9,53 16,50 3,18 0,18 3,33 TPHH160304L 9,53 16,50 3,18 0,38 3,33 TPHH160308L 9,53 16,50 3,18 0,79 3,33 NOTE: Right-hand inserts used in left-hand bars only. widia.com D51
