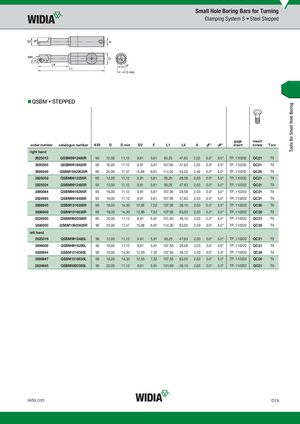

Tools for Small Hole Boring Small Hole Boring Bars for Turning Clamping System S • Steel Stepped „QSBM • STEPPED gage insert order number catalogue number KRI D D min D2 F L1 L4 A aF° aP° insert screw Torx right hand 2825013 QSBM9912480R 90 12,00 11,12 9,91 5,61 95,25 47,63 2,03 0.0° 5.0° TP..110202 QC21 T9 3890865 QSBM9916480R 90 16,00 11,12 9,91 5,61 107,95 47,63 2,03 0.0° 5.0° TP..110202 QC21 T9 3886949 QSBM15920630R 90 20,00 17,47 15,88 8,97 114,30 63,50 2,49 0.0° 5.0° TP..110202 QC26 T9 2825052 QSBM9912295R 95 12,00 11,12 9,91 5,61 95,25 28,58 2,03 0.0° 5.0° TP..110202 QC21 T9 2825024 QSBM9912485R 95 12,00 11,12 9,91 5,61 95,25 47,63 2,03 0.0° 5.0° TP..110202 QC21 T9 3890864 QSBM9916295R 95 16,00 11,12 9,91 5,61 107,95 28,58 2,03 0.0° 5.0° TP..110202 QC21 T9 2824993 QSBM9916485R 95 16,00 11,12 9,91 5,61 107,95 47,63 2,03 0.0° 5.0° TP..110202 QC21 T9 3886945 QSBM1316385R 95 16,00 14,30 12,95 7,52 107,95 38,10 2,03 0.0° 5.0° TP..110202 QC26 T9 3886948 QSBM1316635R 95 16,00 14,30 12,95 7,52 107,95 63,50 2,03 0.0° 5.0° TP..110202 QC26 T9 2824950 QSBM9920385R 95 20,00 11,12 9,91 5,61 101,60 38,10 2,03 0.0° 5.0° TP..110202 QC21 T9 3886950 QSBM15920635R 95 20,00 17,47 15,88 8,97 114,30 63,50 2,49 0.0° 5.0° TP..110202 QC26 T9 left hand 2825019 QSBM9912485L 95 12,00 11,12 9,91 5,61 95,25 47,63 2,03 0.0° 5.0° TP..110202 QC21 T9 3896089 QSBM9916295L 95 16,00 11,12 9,91 5,61 107,95 28,58 2,03 0.0° 5.0° TP..110202 QC21 T9 3886944 QSBM1316385L 95 16,00 14,30 12,95 7,52 107,95 38,10 2,03 0.0° 5.0° TP..110202 QC26 T9 3886947 QSBM1316635L 95 16,00 14,30 12,95 7,52 107,95 63,50 2,03 0.0° 5.0° TP..110202 QC26 T9 2824945 QSBM9920385L 95 20,00 11,12 9,91 5,61 101,60 38,10 2,03 0.0° 5.0° TP..110202 QC21 T9 widia.com D19
