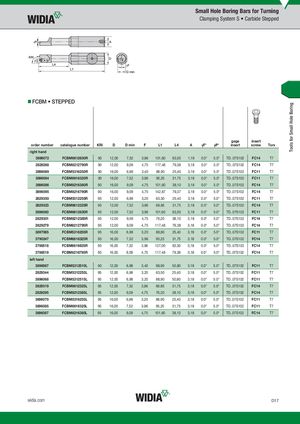

Tools for Small Hole Boring Small Hole Boring Bars for Turning Clamping System S • Carbide Stepped „FCBM • STEPPED gage insert order number catalogue number KRI D D min F L1 L4 A aF° aP° insert screw Torx right hand 3896072 FCBM6612630R 90 12,00 7,52 3,96 101,60 63,50 1,19 0.0° 5.0° TD..07S102 FC14 T7 2829268 FCBM8212790R 90 12,00 9,09 4,75 117,48 79,38 3,18 0.0° 5.0° TD..07S102 FC14 T7 3896069 FCBM5316250R 90 16,00 6,98 3,40 88,90 25,40 3,18 0.0° 5.0° TD..07S102 FC11 T7 3896084 FCBM6616320R 90 16,00 7,52 3,96 95,25 31,75 3,18 0.0° 5.0° TD..07S102 FC11 T7 3896086 FCBM8216380R 90 16,00 9,09 4,75 101,60 38,10 3,18 0.0° 5.0° TD..07S102 FC14 T7 3896095 FCBM8216790R 90 16,00 9,09 4,75 142,87 79,37 3,18 0.0° 5.0° TD..07S102 FC14 T7 2829350 FCBM5312255R 95 12,00 6,98 3,20 63,50 25,40 3,18 0.0° 5.0° TD..07S102 FC11 T7 2829323 FCBM6612325R 95 12,00 7,52 3,96 69,85 31,75 3,18 0.0° 5.0° TD..07S102 FC14 T7 3896083 FCBM6612635R 95 12,00 7,52 3,96 101,60 63,50 3,18 0.0° 5.0° TD..07S102 FC11 T7 2829301 FCBM8212385R 95 12,00 9,09 4,75 76,20 38,10 3,18 0.0° 5.0° TD..07S102 FC14 T7 2829279 FCBM8212795R 95 12,00 9,09 4,75 117,48 79,38 3,18 0.0° 5.0° TD..07S102 FC14 T7 3897085 FCBM5316255R 95 16,00 6,98 3,20 88,90 25,40 3,18 0.0° 5.0° TD..07S102 FC11 T7 3790247 FCBM6616325R 95 16,00 7,52 3,96 95,25 31,75 3,18 0.0° 5.0° TD..07S102 FC14 T7 3786518 FCBM6616635R 95 16,00 7,52 3,96 127,00 63,50 3,18 0.0° 5.0° TD..07S102 FC14 T7 3786519 FCBM8216795R 95 16,00 9,09 4,75 117,48 79,38 3,18 0.0° 5.0° TD..07S102 FC14 T7 left hand 3896067 FCBM5312510L 90 12,00 6,98 3,40 88,90 50,80 3,18 0.0° 5.0° TD..07S102 FC11 T7 2829344 FCBM5312255L 95 12,00 6,98 3,20 63,50 25,40 3,18 0.0° 5.0° TD..07S102 FC11 T7 3896068 FCBM5312515L 95 12,00 6,98 3,20 88,90 50,80 3,18 0.0° 5.0° TD..07S102 FC11 T7 2829319 FCBM6612325L 95 12,00 7,52 3,96 69,85 31,75 3,18 0.0° 5.0° TD..07S102 FC14 T7 2829295 FCBM8212385L 95 12,00 9,09 4,75 76,20 38,10 3,18 0.0° 5.0° TD..07S102 FC14 T7 3896070 FCBM5316255L 95 16,00 6,98 3,20 88,90 25,40 3,18 0.0° 5.0° TD..07S102 FC11 T7 3896085 FCBM6616325L 95 16,00 7,52 3,96 95,25 31,75 3,18 0.0° 5.0° TD..07S102 FC11 T7 3896087 FCBM8216385L 95 16,00 9,09 4,75 101,60 38,10 3,18 0.0° 5.0° TD..07S102 FC14 T7 widia.com D17
