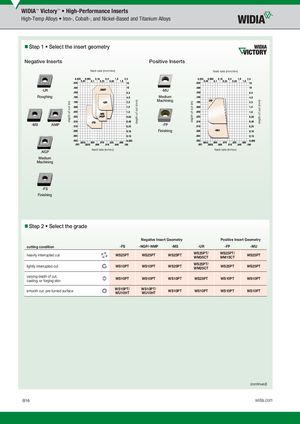

depth of cut (in) depth of cut (mm) depth of cut (in) depth of cut (mm) WIDIA™ Victory™ • High-Performance Inserts High-Temp Alloys • Iron-, Cobalt-, and Nickel-Based and Titanium Alloys Step 1 • Select the insert geometry Negative Inserts Positive Inserts feed rate (mm/rev) feed rate (mm/rev) -UR -MU Roughing Medium Machining -MS .NMP -FP Finishing .NGP feed rate (in/rev) feed rate (in/rev) Medium Machining -FS Finishing Step 2 • Select the grade Negative Insert Geometry Positive Insert Geometry cutting condition -FS -NGP/-NMP -MS -UR -FP -MU heavily interrupted cut WS25PT WS25PT WS25PT WS25PT/ WS25PT/WM35CTWM15CT WS25PT lightly interrupted cut WS10PT WS10PT WS25PT WS25PT/WM25CTWS25PT WS25PT varying depth of cut,casting, or forging skin WS10PT WS10PT WS10PT WS25PT WS10PT WS10PT smooth cut, pre-turned surface WS10PT/WU10HT WS10PT/WU10HT WS10PT WS10PT WS10PT WS10PT (continued) B16 widia.com
