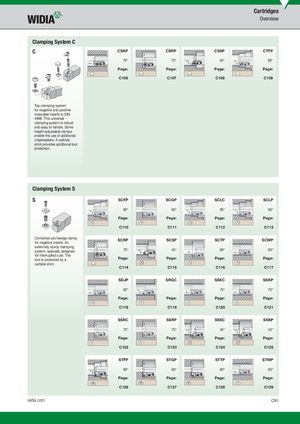

Cartridges Overview Clamping System C C CSKP CSRP CSSP CTFP 75° 75° 45° 90° Page: Page: Page: Page: C106 C107 C108 C109 Top clamping system for negative and positive indexable inserts to DIN 4968. This universal clamping system is robust and easy to handle. Some height-adjustable clamps enable the use of additional chipbreakers. A carbide shim provides additional tool protection. Clamping System S S SCFP SCGP SCLC SCLP 90° 90° 95° 95° Page: Page: Page: Page: C110 C111 C112 C113 Combined pin/wedge clampfor negative inserts. An SCRP SCSP SCTP SCWP extremely sturdy clamping system, specially designed 75° 45° 60° 60° for interrupted cuts. The tool is protected by a Page: Page: Page: Page: carbide shim. C114 C115 C116 C117 SDJP SRGC SSKC SSKP 93° 75° 75° Page: Page: Page: Page: C118 C119 C120 C121 SSRC SSRP SSSC SSSP 75° 75° 45° 45° Page: Page: Page: Page: C122 C123 C124 C125 STFP STGP STTP STWP 90° 90° 60° 60° Page: Page: Page: Page: C126 C127 C128 C129 widia.com C91
