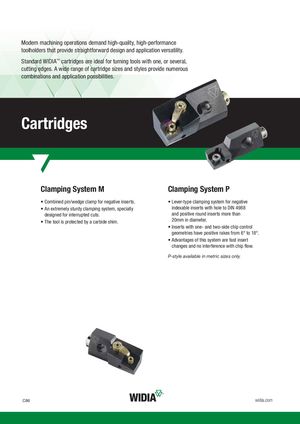

Modern machining operations demand high-quality, high-performance toolholders that provide straightforward design and application versatility. Standard WIDIA™ cartridges are ideal for turning tools with one, or several, cutting edges. A wide range of cartridge sizes and styles provide numerous combinations and application possibilities. Cartridges Clamping System M Clamping System P • Combined pin/wedge clamp for negative inserts. • Lever-type clamping system for negative • An extremely sturdy clamping system, specially indexable inserts with hole to DIN 4988 designed for interrupted cuts. and positive round inserts more than • The tool is protected by a carbide shim. 20mm in diameter. • Inserts with one- and two-side chip control geometries have positive rakes from 6° to 18°. • Advantages of this system are fast insert changes and no interference with chip flow. P-style available in metric sizes only. C86 widia.com
