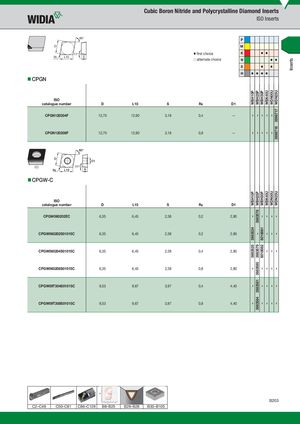

WBH10P––WBH10P–38835243883525––– WBH25P––WBH25P3883578–3883579388358038835813883584 WBH30P––WBH30P–60180816018082––– WBK40U––WBK40U–––––– WDN00U––WDN00U–––––– WDN25U38987173898718WDN25U–––––– Inserts Cubic Boron Nitride and Polycrystalline Diamond Inserts ISO Inserts 80° P D M 11° ⅷ first choice K ⅷ ⅷ Rε L10 S ࠗ alternate choice N ⅷ ⅷ S ⅷ ⅷ H ⅷ ⅷ ⅷ ⅷ „CPGN ISO catalogue number D L10 S R¡ D1 CPGN120304F 12,70 12,90 3,18 0,4 — CPGN120308F 12,70 12,90 3,18 0,8 — (C) „CPGW-C ISO catalogue number D L10 S R¡ D1 CPGW060202EC 6,35 6,45 2,38 0,2 2,80 CPGW060202S01015C 6,35 6,45 2,38 0,2 2,80 CPGW060204S01015C 6,35 6,45 2,38 0,4 2,80 CPGW060208S01015C 6,35 6,45 2,38 0,8 2,80 CPGW09T304S01015C 9,53 9,67 3,97 0,4 4,40 CPGW09T308S01015C 9,53 9,67 3,97 0,8 4,40 B203 C2–C49 C50–C81 C86–C129 B8–B25 B26–B28 B30–B105
