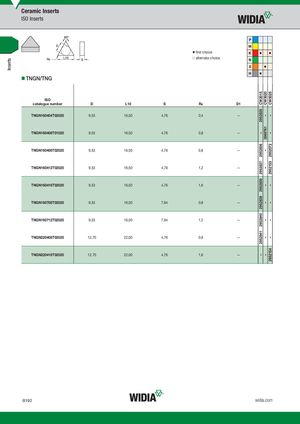

Inserts CW20152952835–295283629528372952838295283929528402952841– CW3020–3869761––––––– CW5025––29520722952153––––2952154 Ceramic Inserts ISO Inserts P M ⅷ first choice K ⅷ ⅷ ࠗ alternate choice N S ⅷ H ⅷ „TNGN/TNG ISO catalogue number D L10 S R¡ D1 TNGN160404T02020 9,53 16,50 4,76 0,4 — TNGN160408T01020 9,53 16,50 4,76 0,8 — TNGN160408T02020 9,53 16,50 4,76 0,8 — TNGN160412T02020 9,53 16,50 4,76 1,2 — TNGN160416T02020 9,53 16,50 4,76 1,6 — TNGN160708T02020 9,53 16,50 7,94 0,8 — TNGN160712T02020 9,53 16,50 7,94 1,2 — TNGN220408T02020 12,70 22,00 4,76 0,8 — TNGN220416T02020 12,70 22,00 4,76 1,6 — B192 widia.com
