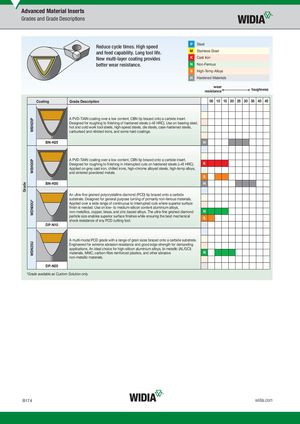

Grade WBH25PWBH30PWDN00U*WDN25U Advanced Material Inserts Grades and Grade Descriptions Reduce cycle times. High speed P Steel and feed capability. Long tool life. M Stainless Steel New multi-layer coating provides K Cast Iron better wear resistance. N Non-Ferrous S High-Temp Alloys H Hardened Materials wear resistance toughness Coating Grade Description 05 10 15 20 25 30 35 40 45 A PVD-TiAlN coating over a low content, CBN tip brazed onto a carbide insert. Designed for roughing to finishing of hardened steels (>45 HRC). Use on bearing steel, hot and cold work tool steels, high-speed steels, die steels, case-hardened steels, carburised and nitrided irons, and some hard coatings. BN-H25 H A PVD-TiAlN coating over a low content, CBN tip brazed onto a carbide insert. Designed for roughing to finishing in interrupted cuts on hardened steels (>45 HRC). K Applied on grey cast iron, chilled irons, high-chrome alloyed steels, high-temp alloys, and sintered powdered metals. S BN-H30 H An ultra-fine grained polycrystalline diamond (PCD) tip brazed onto a carbide substrate. Designed for general purpose turning of primarily non-ferrous materials. Applied over a wide range of continuous to interrupted cuts where superior surface finish is needed. Use on low- to medium-silicon content aluminium alloys, non-metallics, copper, brass, and zinc-based alloys. The ultra-fine grained diamond N particle size enables superior surface finishes while ensuring the best mechanicalshock resistance of any PCD cutting tool.S DP-N10 A multi-modal PCD grade with a range of grain sizes brazed onto a carbide substrate. Engineered for extreme abrasion resistance and good edge strength for demanding applications. An ideal choice for high-silicon aluminium alloys, bi-metallic (AL/GCI) materials, MMC, carbon-fibre reinforced plastics, and other abrasive N non-metallic materials. DP-N25 *Grade available as Custom Solution only. B174 widia.com
