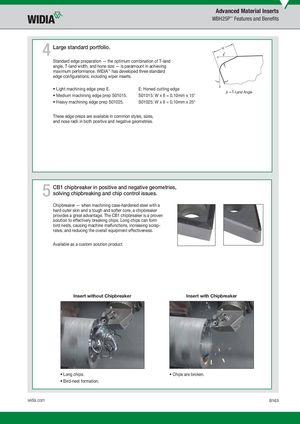

Advanced Material Inserts WBH25P™ Features and Benefits 4 Large standard portfolio. W β Standard edge preparation — the optimum combination of T-land angle, T-land width, and hone size — is paramount in achieving maximum performance. WIDIA™ has developed three standard edge configurations, including wiper inserts. • Light machining edge prep E. E: Honed cutting edge α ` —T-Land Angle • Medium machining edge prep S01015. S01015: W x ß = 0,10mm x 15° • Heavy machining edge prep S01025. S01025: W x ß = 0,10mm x 25° These edge preps are available in common styles, sizes, and nose radii in both positive and negative geometries. 5 CB1 chipbreaker in positive and negative geometries, solving chipbreaking and chip control issues. Chipbreaker — when machining case-hardened steel with a hard outer skin and a tough and softer core, a chipbreaker provides a great advantage. The CB1 chipbreaker is a proven solution to effectively breaking chips. Long chips can form bird nests, causing machine malfunctions, increasing scrap- rates, and reducing the overall equipment effectiveness. Available as a custom solution product. Insert without Chipbreaker Insert with Chipbreaker • Long chips. • Chips are broken. • Bird-nest formation. widia.com B163
