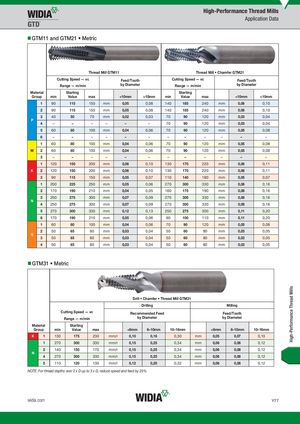

High-Performance Thread Mills Application Data „GTM11 and GTM21 • Metric Thread Mill GTM11 Thread Mill • Chamfer GTM21 Cutting Speed — vc Feed/Tooth Cutting Speed — vc Feed/Tooth Range — m/min by Diameter Range — m/min by Diameter Material Starting Starting Group min Value max <10mm >10mm min Value max <10mm >10mm 1 90 115 150 mm 0,05 0,08 140 185 240 mm 0,06 0,10 2 90 115 150 mm 0,05 0,08 140 185 240 mm 0,06 0,10 3 40 50 70 mm 0,02 0,03 70 90 120 mm 0,03 0,04 P 4 – – – – – – 70 90 120 mm 0,03 0,04 5 60 80 100 mm 0,04 0,06 70 90 120 mm 0,05 0,08 6 – – – – – – – – – – – – 1 60 80 100 mm 0,04 0,06 70 90 120 mm 0,05 0,08 M 2 60 80 100 mm 0,04 0,06 70 90 120 mm 0,05 0,08 3 – – – – – – – – – – – – 1 120 150 200 mm 0,06 0,10 130 170 220 mm 0,06 0,11 K 2 120 150 200 mm 0,06 0,10 130 170 220 mm 0,06 0,11 3 90 115 150 mm 0,05 0,07 110 140 180 mm 0,05 0,07 1 200 225 250 mm 0,05 0,06 270 300 330 mm 0,08 0,16 2 170 190 210 mm 0,04 0,05 160 175 190 mm 0,08 0,16 3 250 275 300 mm 0,07 0,09 270 300 330 mm 0,08 0,16 N 4 250 275 300 mm 0,07 0,09 270 300 330 mm 0,08 0,16 5 270 300 330 mm 0,12 0,13 250 275 300 mm 0,11 0,20 6 170 190 210 mm 0,05 0,06 90 100 110 mm 0,11 0,20 1 60 80 100 mm 0,04 0,06 70 90 120 mm 0,05 0,08 2 50 65 80 mm 0,03 0,04 50 60 80 mm 0,03 0,05 S 3 50 65 80 mm 0,03 0,04 50 60 80 mm 0,03 0,05 4 50 65 80 mm 0,03 0,04 50 60 80 mm 0,03 0,05 „GTM31 • Metric Drill • Chamfer • Thread Mill GTM31 Drilling Milling Cutting Speed — vc Recommended Feed Feed/Tooth Range — m/min by Diameter by Diameter Material Starting Group min Value max <6mm 6–10mm 10–16mm <6mm 6–10mm 10–16mm K 1 130 175 230 mm/r 0,10 0,16 0,30 mm 0,05 0,07 0,10 1 270 300 330 mm/r 0,15 0,25 0,34 mm 0,06 0,08 0,12 2 140 150 170 mm/r 0,15 0,25 0,34 mm 0,06 0,08 0,12 N 4 270 300 330 mm/r 0,15 0,25 0,34 mm 0,06 0,08 0,12 5 110 120 130 mm/r 0,12 0,20 0,32 mm 0,06 0,08 0,12 NOTE: For thread depths over 2 x D up to 3 x D, reduce speed and feed by 25%. widia.com Y77 High-Performance Thread Mills
