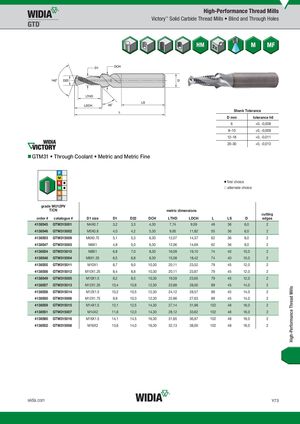

High-Performance Thread Mills Victory™ Solid Carbide Thread Mills • Blind and Through Holes Shank Tolerance D mm tolerance h6 6 +0, -0,008 8–10 +0, -0,009 12–18 +0, -0,011 20–30 +0, -0,013 „GTM31 • Through Coolant • Metric and Metric Fine ⅷ first choice ࠗ alternate choice graWdeUW12UP1V2PV TiCN metric dimensions cutting order # catalogue # D1 size D1 D22 DCH LTHD LDCH L LS D edges 4138545 GTM315001 M4X0.7 3,2 3,3 4,30 7,74 9,59 49 36 6,0 2 4138546 GTM315002 M5X0.8 4,0 4,2 5,30 9,65 11,82 55 36 6,0 2 4138553 GTM315009 M6X0.75 5,1 5,3 6,30 12,07 14,37 62 36 8,0 2 4138547 GTM315003 M6X1 4,8 5,0 6,30 12,06 14,69 62 36 8,0 2 4138554 GTM315010 M8X1 6,8 7,0 8,30 16,09 19,10 74 40 10,0 2 4138548 GTM315004 M8X1.25 6,5 6,8 8,30 15,08 18,42 74 40 10,0 2 4138555 GTM315011 M10X1 8,7 9,0 10,30 20,11 23,52 79 45 12,0 2 4138556 GTM315012 M10X1.25 8,4 8,8 10,30 20,11 23,87 79 45 12,0 2 4138549 GTM315005 M10X1.5 8,2 8,5 10,30 19,59 23,65 79 45 12,0 2 4138557 GTM315013 M12X1.25 10,4 10,8 12,30 23,88 28,00 89 45 14,0 2 4138558 GTM315014 M12X1.5 10,2 10,5 12,30 24,12 28,57 89 45 14,0 2 4138550 GTM315006 M12X1.75 9,9 10,3 12,30 22,86 27,63 89 45 14,0 2 4138559 GTM315015 M14X1.5 12,1 12,5 14,30 27,14 31,98 102 48 16,0 2 4138551 GTM315007 M14X2 11,6 12,0 14,30 28,12 33,62 102 48 16,0 2 4138560 GTM315016 M16X1.5 14,1 14,5 16,30 31,65 36,87 102 48 18,0 2 4138552 GTM315008 M16X2 13,6 14,0 16,30 32,13 38,00 102 48 18,0 2 widia.com Y73 High-Performance Thread Mills
