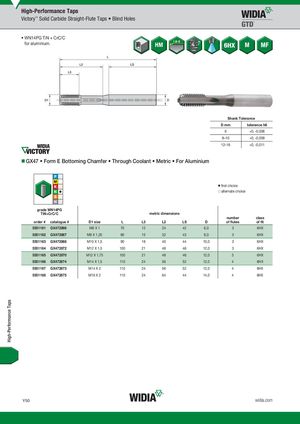

High-Performance Taps Victory™ Solid Carbide Straight-Flute Taps • Blind Holes • WN14PG TiN + CrC/C for aluminium. Shank Tolerance D mm tolerance h6 6 +0, -0,008 8–10 +0, -0,009 12–16 +0, -0,011 „GX47 • Form E Bottoming Chamfer • Through Coolant • Metric • For Aluminium ⅷ first choice ࠗ alternate choice graWdeNW14NP1G4PG TiN+CrC/C metric dimensions number class order # catalogue # D1 size L L3 L2 LS D of flutes of fit 5551161 GX472866 M6 X 1 70 12 24 42 6,0 3 6HX 5551162 GX472867 M8 X 1,25 80 15 32 43 8,0 3 6HX 5551163 GX472868 M10 X 1,5 90 18 40 44 10,0 3 6HX 5551164 GX472872 M12 X 1,5 100 21 48 46 12,0 3 6HX 5551165 GX472870 M12 X 1,75 100 21 48 46 12,0 3 6HX 5551166 GX472874 M14 X 1,5 110 24 56 52 12,0 4 6HX 5551167 GX472873 M14 X 2 110 24 56 52 12,0 4 6HX 5551168 GX472875 M16 X 2 110 24 64 44 14,0 4 6HX Y50 widia.com High-Performance Taps
