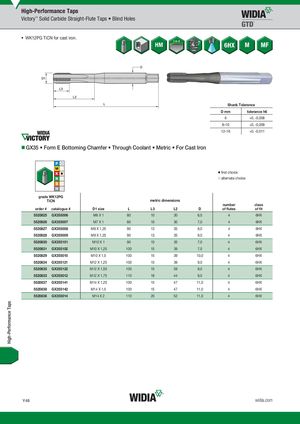

High-Performance Taps Victory™ Solid Carbide Straight-Flute Taps • Blind Holes • WK12PG TiCN for cast iron. Shank Tolerance D mm tolerance h6 6 +0, -0,008 8–10 +0, -0,009 12–16 +0, -0,011 GX35 • Form E Bottoming Chamfer • Through Coolant • Metric • For Cast Iron ⅷ first choice ࠗ alternate choice graWdeKW12KP1G2PG TiCN metric dimensions number class order # catalogue # D1 size L L3 L2 D of flutes of fit 5520825 GX355006 M6 X 1 80 10 30 6,0 4 6HX 5520826 GX355007 M7 X 1 80 10 30 7,0 4 6HX 5520827 GX355008 M8 X 1,25 90 13 35 8,0 4 6HX 5520828 GX355009 M9 X 1,25 90 13 35 9,0 4 6HX 5520830 GX355101 M10 X 1 90 10 35 7,0 4 6HX 5520831 GX355102 M10 X 1,25 100 15 39 7,0 4 6HX 5520829 GX355010 M10 X 1,5 100 15 39 10,0 4 6HX 5520834 GX355121 M12 X 1,25 100 15 39 9,0 4 6HX 5520835 GX355122 M12 X 1,50 100 15 39 9,0 4 6HX 5520833 GX355012 M12 X 1,75 110 18 44 9,0 4 6HX 5520837 GX355141 M14 X 1,25 100 15 47 11,0 4 6HX 5520838 GX355142 M14 X 1,5 100 15 47 11,0 4 6HX 5520836 GX355014 M14 X 2 110 20 52 11,0 4 6HX Y48 widia.com High-Performance Taps
