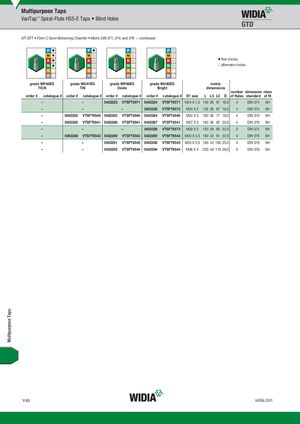

Multipurpose Taps VariTap™ Spiral-Flute HSS-E Taps • Blind Holes (VT-SFT • Form C Semi-Bottoming Chamfer • Metric DIN 371, 374, and 376 — continued) ⅷ first choice ࠗ alternate choice graWdePW42PE4G2EG graWdeUW41UE4G1EG graWdePW49PE4G9EG graWdeUW40UE4G0EG metric TiCN TiN Oxide Bright dimensions number dimension class order # catalogue # order # catalogue # order # catalogue # order # catalogue # D1 size L L3 L2 D of flutes standard of fit – – 5402223 VTSFT6571 5402224 VTSFT6571 M24 X 1,5 140 28 67 18,0 4 DIN 374 6H – – – 5402225 VTSFT6572 M24 X 2 140 28 67 18,0 4 DIN 374 6H – 5402282 VTSFT6540 5402283 VTSFT6540 5402284 VTSFT6540 M24 X 3 160 36 77 18,0 4 DIN 376 6H – 5402285 VTSFT6541 5402286 VTSFT6541 5402287 VTSFT6541 M27 X 3 160 36 82 20,0 4 DIN 376 6H – – – 5402226 VTSFT6573 M30 X 2 150 28 80 22,0 2 DIN 374 6H – 5402288 VTSFT6542 5402289 VTSFT6542 5402290 VTSFT6542 M30 X 3,5 180 42 91 22,0 4 DIN 376 6H – – 5402291 VTSFT6543 5402292 VTSFT6543 M33 X 3,5 180 42 100 25,0 4 DIN 376 6H – – 5402293 VTSFT6544 5402294 VTSFT6544 M36 X 4 200 48 110 28,0 5 DIN 376 6H Y40 widia.com Multipurpose Taps
