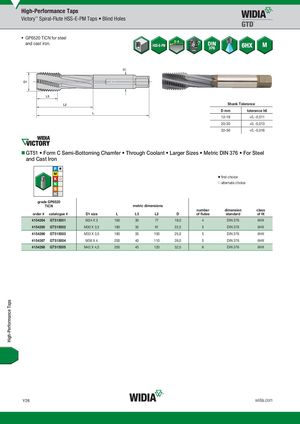

High-Performance Taps Victory™ Spiral-Flute HSS-E-PM Taps • Blind Holes • GP6520 TiCN for steel and cast iron. Shank Tolerance D mm tolerance h6 12–18 +0, -0,011 20–30 +0, -0,013 32–36 +0, -0,016 „GT51 • Form C Semi-Bottoming Chamfer • Through Coolant • Larger Sizes • Metric DIN 376 • For Steel and Cast Iron ⅷ first choice ࠗ alternate choice gradGePG65P260520 TiCN metric dimensions number dimension class order # catalogue # D1 size L L3 L2 D of flutes standard of fit 4154264 GT515001 M24 X 3 160 30 77 18,0 4 DIN 376 6HX 4154265 GT515002 M30 X 3,5 180 35 91 22,0 5 DIN 376 6HX 4154266 GT515003 M33 X 3,5 180 35 100 25,0 5 DIN 376 6HX 4154267 GT515004 M36 X 4 200 40 110 28,0 5 DIN 376 6HX 4154268 GT515005 M42 X 4,5 200 45 120 32,0 6 DIN 376 6HX Y28 widia.com High-Performance Taps
