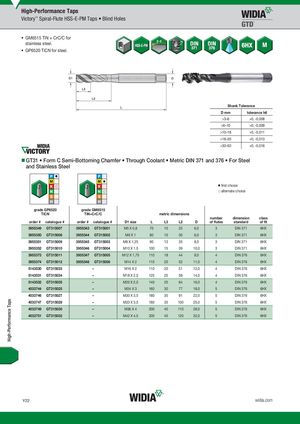

High-Performance Taps Victory™ Spiral-Flute HSS-E-PM Taps • Blind Holes • GM6515 TiN + CrC/C for stainless steel. • GP6520 TiCN for steel. Shank Tolerance D mm tolerance h6 >3–6 +0, -0,008 >6–10 +0, -0,009 >10–18 +0, -0,011 >18–30 +0, -0,013 >30–50 +0, -0,016 „GT31 • Form C Semi-Bottoming Chamfer • Through Coolant • Metric DIN 371 and 376 • For Steel and Stainless Steel ⅷ first choice ࠗ alternate choice graGdeP6G5P260520 graGdeMG65M165515 TiCN TiN+CrC/C metric dimensions number dimension class order # catalogue # order # catalogue # D1 size L L3 L2 D of flutes standard of fit 3955349 GT315007 3955343 GT315001 M5 X 0,8 70 10 25 6,0 3 DIN 371 6HX 3955350 GT315008 3955344 GT315002 M6 X 1 80 10 30 6,0 3 DIN 371 6HX 3955351 GT315009 3955345 GT315003 M8 X 1,25 90 13 35 8,0 3 DIN 371 6HX 3955352 GT315010 3955346 GT315004 M10 X 1,5 100 15 39 10,0 3 DIN 371 6HX 3955373 GT315011 3955347 GT315005 M12 X 1,75 110 18 44 9,0 4 DIN 376 6HX 3955374 GT315012 3955348 GT315006 M14 X 2 110 20 52 11,0 4 DIN 376 6HX 5143530 GT315033 – M16 X 2 110 20 51 12,0 4 DIN 376 6HX 5143531 GT315034 – M18 X 2,5 125 25 58 14,0 4 DIN 376 6HX 5143532 GT315035 – M20 X 2,5 140 25 64 16,0 4 DIN 376 6HX 4033744 GT315025 – M24 X 3 160 30 77 18,0 5 DIN 376 6HX 4033746 GT315027 – M30 X 3,5 180 35 91 22,0 5 DIN 376 6HX 4033747 GT315028 – M33 X 3,5 180 35 100 25,0 5 DIN 376 6HX 4033749 GT315030 – M36 X 4 200 40 110 28,0 5 DIN 376 6HX 4033751 GT315032 – M42 X 4,5 200 45 120 32,0 5 DIN 376 6HX Y22 widia.com High-Performance Taps
