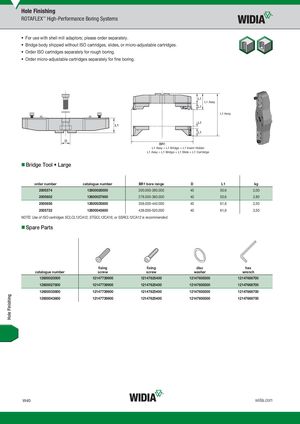

Hole Finishing ROTAFLEX™ High-Performance Boring Systems • For use with shell mill adaptors; please order separately. • Bridge body shipped without ISO cartridges, slides, or micro-adjustable cartridges. • Order ISO cartridges separately for rough boring. • Order micro-adjustable cartridges separately for fine boring. L1 Assy L1 Assy L1 Assy = L1 Bridge + L1 Insert Holder L1 Assy = L1 Bridge + L1 Slide + L1 Cartridge „Bridge Tool • Large order number catalogue number BR1 bore range D L1 kg 2005574 12600020000 200.000-280.000 40 50,6 2,00 2005602 12600027800 278.000-360.000 40 50,6 2,80 2005656 12600035800 358.000-440.000 40 61,6 2,50 2005722 12600043800 438.000-520.000 40 61,6 3,50 NOTE: Use of ISO cartridges SCLCL12CA12, STGCL12CA16, or SSRCL12CA12 is recommended. „Spare Parts fixing fixing disc hex catalogue number screw screw washer wrench 12600020000 12147739900 12147625400 12147600300 12147666700 12600027800 12147739900 12147625400 12147600300 12147666700 12600035800 12147739900 12147625400 12147600300 12147666700 12600043800 12147739900 12147625400 12147600300 12147666700 W40 widia.com Hole Finishing
