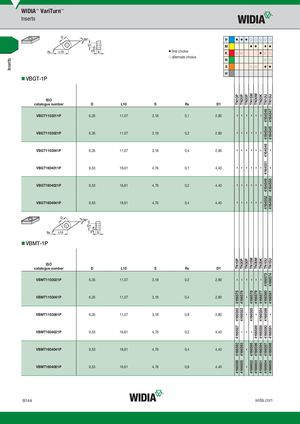

Inserts TN10P––––––TN10P–41665754166582416658741665924166599 TN20P––––––TN20P–41665764166583–41665934166600 TN30P––––––TN30P–––––– TN15M––––––TN15M–41665784166585–41665954166602 TN30M––––––TN30M–4166579–416658941665964166603 TN20K––––––TN20K–41665774166584416658841665944166601 TN10U416454641645444164548416455141645494164552TN10U416657341665804166586416659041665974166604 TN15U41645474164545––41645504164563TN15U41665744166581–416659141665984166605 WIDIA™ VariTurn™ Inserts P ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ࠗ ࠗ M ⅷ ⅷ ⅷ ⅷ ⅷ first choice K ࠗ ࠗ ⅷ ࠗ ࠗ ࠗ alternate choice N ࠗ ࠗ S ࠗ ࠗ ⅷ ⅷ H „VBGT-1P ISO catalogue number D L10 S R¡ D1 VBGT1103011P 6,35 11,07 3,18 0,1 2,80 VBGT1103021P 6,35 11,07 3,18 0,2 2,80 VBGT1103041P 6,35 11,07 3,18 0,4 2,80 VBGT1604011P 9,53 16,61 4,76 0,1 4,40 VBGT1604021P 9,53 16,61 4,76 0,2 4,40 VBGT1604041P 9,53 16,61 4,76 0,4 4,40 „VBMT-1P ISO catalogue number D L10 S R¡ D1 VBMT1103021P 6,35 11,07 3,18 0,2 2,80 VBMT1103041P 6,35 11,07 3,18 0,4 2,80 VBMT1103081P 6,35 11,07 3,18 0,8 2,80 VBMT1604021P 9,53 16,61 4,76 0,2 4,40 VBMT1604041P 9,53 16,61 4,76 0,4 4,40 VBMT1604081P 9,53 16,61 4,76 0,8 4,40 B144 widia.com
