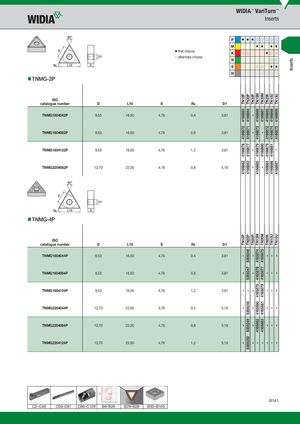

TN10P4166863416687041668764166882TN10P–––––– TN20P4166864416687141668774166883TN20P53592465359247–535924853592495359250 TN30P––––TN30P–––––– TN15M4166866416687341668794166885TN15M41658744165876416587841658804165882– TN30M4166867–4166880–TN30M41658754165877416587941658814165883– TN20K4166865416687241668784166884TN20K–––––– TN10U4166868416687441668814166886TN10U–––––– TN15U41668694166875–4166887TN15U–––––– Inserts WIDIA™ VariTurn™ Inserts P ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ࠗ ࠗ M ⅷ ⅷ ⅷ ⅷ ⅷ first choice K ࠗ ࠗ ⅷ ࠗ ࠗ ࠗ alternate choice N ࠗ ࠗ S ࠗ ࠗ ⅷ ⅷ H TNMG-2P ISO catalogue number D L10 S R¡ D1 TNMG1604042P 9,53 16,50 4,76 0,4 3,81 TNMG1604082P 9,53 16,50 4,76 0,8 3,81 TNMG1604122P 9,53 16,50 4,76 1,2 3,81 TNMG2204082P 12,70 22,00 4,76 0,8 5,16 TNMG-4P ISO catalogue number D L10 S R¡ D1 TNMG1604044P 9,53 16,50 4,76 0,4 3,81 TNMG1604084P 9,53 16,50 4,76 0,8 3,81 TNMG1604124P 9,53 16,50 4,76 1,2 3,81 TNMG2204044P 12,70 22,00 4,76 0,4 5,16 TNMG2204084P 12,70 22,00 4,76 0,8 5,16 TNMG2204124P 12,70 22,00 4,76 1,2 5,16 B141 C2–C49 C50–C81 C86–C129 B8–B25 B26–B28 B30–B105
