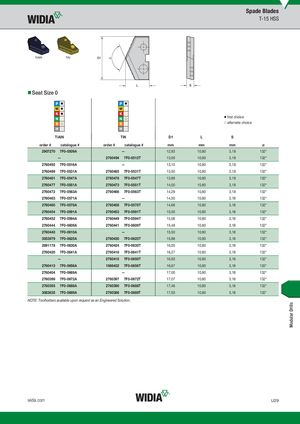

Spade Blades T-15 HSS TiAlN TiN „Seat Size 0 ⅷ first choice ࠗ alternate choice D1 L S TiAlN TiN D1 L S order # catalogue # order # catalogue # mm mm mm m 2907270 7F0-0509A — 12,93 10,80 3,18 132° — 2760494 7F0-0512T 13,00 10,80 3,18 132° 2760492 7F0-0516A — 13,10 10,80 3,18 132° 2760489 7F0-0531A 2760485 7F0-0531T 13,50 10,80 3,18 132° 2760481 7F0-0547A 2760478 7F0-0547T 13,89 10,80 3,18 132° 2760477 7F0-0551A 2760473 7F0-0551T 14,00 10,80 3,18 132° 2760472 7F0-0563A 2760466 7F0-0563T 14,29 10,80 3,18 132° 2760463 7F0-0571A — 14,50 10,80 3,18 132° 2760460 7F0-0578A 2760458 7F0-0578T 14,68 10,80 3,18 132° 2760454 7F0-0591A 2760453 7F0-0591T 15,00 10,80 3,18 132° 2760452 7F0-0594A 2760449 7F0-0594T 15,08 10,80 3,18 132° 2760444 7F0-0609A 2760441 7F0-0609T 15,48 10,80 3,18 132° 2760440 7F0-0610A — 15,50 10,80 3,18 132° 3053979 7F0-0625A 2760430 7F0-0625T 15,88 10,80 3,18 132° 2891178 7F0-0630A 2760424 7F0-0630T 16,00 10,80 3,18 132° 2760420 7F0-0641A 2760418 7F0-0641T 16,27 10,80 3,18 132° — 2760415 7F0-0650T 16,50 10,80 3,18 132° 2760413 7F0-0656A 1988432 7F0-0656T 16,67 10,80 3,18 132° 2760404 7F0-0669A — 17,00 10,80 3,18 132° 2760399 7F0-0672A 2760397 7F0-0672T 17,07 10,80 3,18 132° 2760393 7F0-0688A 2760390 7F0-0688T 17,46 10,80 3,18 132° 3083635 7F0-0689A 2760386 7F0-0689T 17,50 10,80 3,18 132° NOTE: Toolholders available upon request as an Engineered Solution. widia.com U29 Modular Drills
