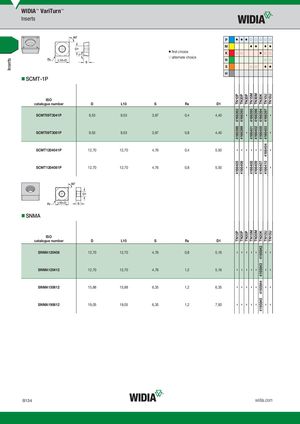

Inserts TN10P41663624166398–4166405TN10P–––– TN20P41663934166399–4166406TN20P–––– TN30P––––TN30P–––– TN15M41663954166401–4166408TN15M–––– TN30M41663964166402–4166409TN30M–––– TN20K41663944166400–4166407TN20K4165842416584341658444165845 TN10U4166397416640341664044166410TN10U–––– TN15U––––TN15U–––– WIDIA™ VariTurn™ Inserts P ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ࠗ ࠗ M ⅷ ⅷ ⅷ ⅷ ⅷ first choice K ࠗ ࠗ ⅷ ࠗ ࠗ ࠗ alternate choice N ࠗ ࠗ S ࠗ ࠗ ⅷ ⅷ H „SCMT-1P ISO catalogue number D L10 S R¡ D1 SCMT09T3041P 9,53 9,53 3,97 0,4 4,40 SCMT09T3081P 9,53 9,53 3,97 0,8 4,40 SCMT1204041P 12,70 12,70 4,76 0,4 5,50 SCMT1204081P 12,70 12,70 4,76 0,8 5,50 „SNMA ISO catalogue number D L10 S R¡ D1 SNMA120408 12,70 12,70 4,76 0,8 5,16 SNMA120412 12,70 12,70 4,76 1,2 5,16 SNMA150612 15,88 15,88 6,35 1,2 6,35 SNMA190612 19,05 19,05 6,35 1,2 7,93 B134 widia.com
