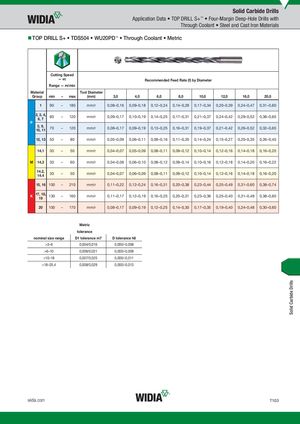

Solid Carbide Drills Application Data • TOP DRILL S+™ • Four-Margin Deep-Hole Drills with Through Coolant • Steel and Cast Iron Materials „TOP DRILL S+ • TDS504 • WU20PD™ • Through Coolant • Metric Cutting Speed — vc Recommended Feed Rate (f) by Diameter Range — m/min Material Tool Diameter Group min – max (mm) 3,0 4,0 6,0 8,0 10,0 12,0 16,0 20,0 1 90 – 180 mm/r 0,08–0,16 0,09–0,18 0,12–0,24 0,14–0,29 0,17–0,34 0,20–0,39 0,24–0,47 0,31–0,60 2, 3, 4,6, 780 – 120 mm/r 0,09–0,17 0,10–0,19 0,14–0,25 0,17–0,31 0,21–0,37 0,24–0,42 0,29–0,52 0,38–0,65 P 5, 9,10, 1170 – 120 mm/r 0,08–0,17 0,09–0,19 0,13–0,25 0,16–0,31 0,19–0,37 0,21–0,42 0,26–0,52 0,32–0,65 12, 13 50 – 80 mm/r 0,05–0,09 0,06–0,11 0,09–0,16 0,11–0,20 0,14–0,24 0,15–0,27 0,20–0,35 0,26–0,45 14,1 30 – 50 mm/r 0,04–0,07 0,05–0,09 0,08–0,11 0,09–0,12 0,10–0,14 0,12–0,16 0,14–0,18 0,16–0,20 M 14,3 30 – 60 mm/r 0,04–0,08 0,06–0,10 0,08–0,12 0,09–0,14 0,10–0,16 0,12–0,18 0,14–0,20 0,16–0,22 14.2,14.4 30 – 50 mm/r 0,04–0,07 0,06–0,09 0,08–0,11 0,09–0,12 0,10–0,14 0,12–0,16 0,14–0,18 0,16–0,20 15, 16 100 – 210 mm/r 0,11–0,22 0,12–0,24 0,16–0,31 0,20–0,38 0,23–0,44 0,25–0,49 0,31–0,60 0,38–0,74 K 17, 18,19130 – 160 mm/r 0,11–0,17 0,12–0,19 0,16–0,25 0,20–0,31 0,23–0,36 0,25–0,40 0,31–0,48 0,38–0,60 20 100 – 170 mm/r 0,08–0,17 0,09–0,19 0,12–0,25 0,14–0,30 0,17–0,35 0,19–0,40 0,24–0,48 0,30–0,60 Metric tolerance nominal size range D1 tolerance m7 D tolerance h6 >3–6 0,004/0,016 0,000/-0,008 >6–10 0,006/0,021 0,000/-0,009 >10–18 0,007/0,025 0,000/-0,011 >18–25,4 0,008/0,029 0,000/-0,013 widia.com T103 Solid Carbide Drills
