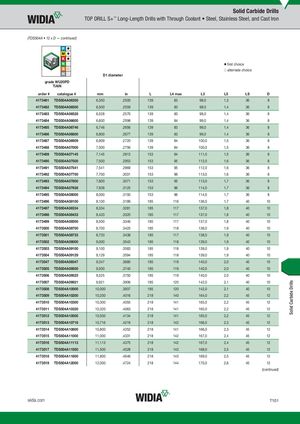

Solid Carbide Drills TOP DRILL S+™ Long-Length Drills with Through Coolant • Steel, Stainless Steel, and Cast Iron (TDS504A • 12 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter TDgSr5a0d4eAW•UW2U0P2D0PD TiAlN order # catalogue # mm in L L4 max L3 L5 LS D 4173481 TDS504A06350 6,350 .2500 139 83 98,0 1,3 36 8 4173482 TDS504A06500 6,500 .2559 139 83 98,0 1,4 36 8 4173483 TDS504A06528 6,528 .2570 139 83 98,0 1,4 36 8 4173484 TDS504A06600 6,600 .2598 139 84 99,0 1,4 36 8 4173485 TDS504A06746 6,746 .2656 139 83 99,0 1,4 36 8 4173486 TDS504A06800 6,800 .2677 139 83 99,0 1,4 36 8 4173487 TDS504A06909 6,909 .2720 139 84 100,0 1,5 36 8 4173488 TDS504A07000 7,000 .2756 139 84 100,0 1,5 36 8 4173489 TDS504A07145 7,145 .2813 153 94 111,0 1,5 36 8 4173490 TDS504A07500 7,500 .2953 153 95 112,0 1,6 36 8 4173491 TDS504A07541 7,541 .2969 153 95 112,0 1,6 36 8 4173492 TDS504A07700 7,700 .3031 153 96 113,0 1,6 36 8 4173493 TDS504A07800 7,800 .3071 153 95 113,0 1,7 36 8 4173494 TDS504A07938 7,938 .3125 153 96 114,0 1,7 36 8 4173495 TDS504A08000 8,000 .3150 153 96 114,0 1,7 36 8 4173496 TDS504A08100 8,100 .3189 185 116 136,0 1,7 40 10 4173497 TDS504A08334 8,334 .3281 185 117 137,0 1,8 40 10 4173498 TDS504A08433 8,433 .3320 185 117 137,0 1,8 40 10 4173499 TDS504A08500 8,500 .3346 185 117 137,0 1,8 40 10 4173500 TDS504A08700 8,700 .3425 185 118 138,0 1,9 40 10 4173501 TDS504A08733 8,733 .3438 185 117 138,0 1,9 40 10 4173502 TDS504A09000 9,000 .3543 185 118 139,0 1,9 40 10 4173503 TDS504A09100 9,100 .3583 185 118 139,0 1,9 40 10 4173504 TDS504A09129 9,129 .3594 185 118 139,0 1,9 40 10 4173547 TDS504A09347 9,347 .3680 185 119 140,0 2,0 40 10 4173505 TDS504A09500 9,500 .3740 185 119 140,0 2,0 40 10 4173506 TDS504A09525 9,525 .3750 185 119 140,0 2,0 40 10 4173507 TDS504A09921 9,921 .3906 185 120 142,0 2,1 40 10 4173508 TDS504A10000 10,000 .3937 185 120 142,0 2,1 40 10 4173509 TDS504A10200 10,200 .4016 218 140 164,0 2,2 45 12 4173510 TDS504A10300 10,300 .4055 218 141 165,0 2,2 45 12 4173511 TDS504A10320 10,320 .4063 218 141 165,0 2,2 45 12 4173512 TDS504A10500 10,500 .4134 218 141 165,0 2,2 45 12 4173513 TDS504A10716 10,716 .4219 218 142 166,0 2,3 45 12 4173514 TDS504A10800 10,800 .4252 218 141 166,0 2,3 45 12 4173515 TDS504A11000 11,000 .4331 218 142 167,0 2,4 45 12 4173516 TDS504A11113 11,113 .4375 218 142 167,0 2,4 45 12 4173517 TDS504A11500 11,500 .4528 218 143 168,0 2,5 45 12 4173518 TDS504A11800 11,800 .4646 218 143 169,0 2,5 45 12 4173519 TDS504A12000 12,000 .4724 218 144 170,0 2,6 45 12 (continued) widia.com T101 Solid Carbide Drills
