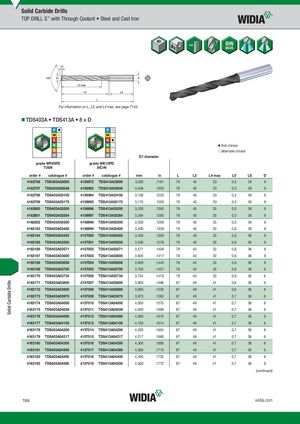

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron For information on L, L3, and L4 max, see page T143. „TDS403A • TDS413A • 8 x D ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4162796 TDS403A03000 4156972 TDS413A03000 3,000 .1181 78 40 33 0,5 36 6 4162797 TDS403A03048 4156993 TDS413A03048 3,048 .1200 78 40 33 0,5 36 6 4162798 TDS403A03100 4156994 TDS413A03100 3,100 .1220 78 40 33 0,5 36 6 4162799 TDS403A03175 4156995 TDS413A03175 3,175 .1250 78 40 33 0,5 36 6 4162800 TDS403A03200 4156996 TDS413A03200 3,200 .1260 78 40 33 0,5 36 6 4162801 TDS403A03264 4156997 TDS413A03264 3,264 .1285 78 40 33 0,5 36 6 4162802 TDS403A03300 4156998 TDS413A03300 3,300 .1299 78 40 33 0,5 36 6 4163163 TDS403A03400 4156999 TDS413A03400 3,400 .1339 78 40 33 0,6 36 6 4163164 TDS403A03455 4157000 TDS413A03455 3,455 .1360 78 40 33 0,6 36 6 4163165 TDS403A03500 4157001 TDS413A03500 3,500 .1378 78 40 33 0,6 36 6 4163166 TDS403A03571 4157002 TDS413A03571 3,571 .1406 78 40 33 0,6 36 6 4163167 TDS403A03600 4157003 TDS413A03600 3,600 .1417 78 40 33 0,6 36 6 4163168 TDS403A03658 4157004 TDS413A03658 3,658 .1440 78 40 33 0,6 36 6 4163169 TDS403A03700 4157005 TDS413A03700 3,700 .1457 78 40 33 0,6 36 6 4163170 TDS403A03734 4157006 TDS413A03734 3,734 .1470 78 40 33 0,6 36 6 4163171 TDS403A03800 4157007 TDS413A03800 3,800 .1496 87 49 41 0,6 36 6 4163172 TDS403A03900 4157008 TDS413A03900 3,900 .1535 87 49 41 0,6 36 6 4163173 TDS403A03970 4157009 TDS413A03970 3,970 .1563 87 49 41 0,7 36 6 4163174 TDS403A04000 4157010 TDS413A04000 4,000 .1575 87 49 41 0,7 36 6 4163175 TDS403A04039 4157011 TDS413A04039 4,039 .1590 87 49 41 0,7 36 6 4163176 TDS403A04090 4157012 TDS413A04090 4,090 .1610 87 49 41 0,7 36 6 4163177 TDS403A04100 4157013 TDS413A04100 4,100 .1614 87 49 41 0,7 36 6 4163178 TDS403A04200 4157014 TDS413A04200 4,200 .1654 87 49 41 0,7 36 6 4163179 TDS403A04217 4157015 TDS413A04217 4,217 .1660 87 49 41 0,7 36 6 4163180 TDS403A04300 4157016 TDS413A04300 4,300 .1693 87 49 41 0,7 36 6 4163181 TDS403A04366 4157017 TDS413A04366 4,366 .1719 87 49 41 0,7 36 6 4163182 TDS403A04400 4157018 TDS413A04400 4,400 .1732 87 49 41 0,7 36 6 4163193 TDS403A04500 4157019 TDS413A04500 4,500 .1772 87 49 41 0,7 36 6 (continued) T68 widia.com Solid Carbide Drills
