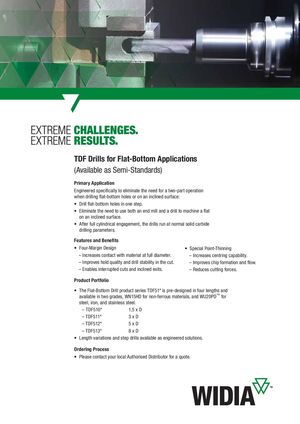

TDF Drills for Flat-Bottom Applications (Available as Semi-Standards) Primary Application Engineered specifically to eliminate the need for a two-part operation when drilling flat-bottom holes or on an inclined surface: • Drill flat-bottom holes in one step. • Eliminate the need to use both an end mill and a drill to machine a flat on an inclined surface. • After full cylindrical engagement, the drills run at normal solid carbide drilling parameters. Features and Benefits • Four-Margin Design • Special Point-Thinning – Increases contact with material at full diameter. – Increases centring capability. – Improves hold quality and drill stability in the cut. – Improves chip formation and flow. – Enables interrupted cuts and inclined exits. – Reduces cutting forces. Product Portfolio • The Flat-Bottom Drill product series TDF51* is pre-designed in four lengths and available in two grades, WN15HD for non-ferrous materials, and WU20PD™ for steel, iron, and stainless steel. – TDF510* 1,5 x D – TDF511* 3xD – TDF512* 5xD – TDF513* 8xD • Length variations and step drills available as engineered solutions. Ordering Process • Please contact your local Authorised Distributor for a quote.
