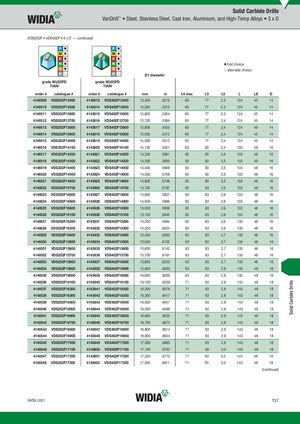

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (VDS202F • VDS402F • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d2eFW•UW2U5P25DPD VDgSr4a0d2eFW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148509 VDS202F13400 4143613 VDS402F13400 13,400 .5276 60 77 2,3 124 45 14 4148510 VDS202F13500 4143614 VDS402F13500 13,500 .5315 60 77 2,3 124 45 14 4148511 VDS202F13600 4143615 VDS402F13600 13,600 .5354 60 77 2,3 124 45 14 4148512 VDS202F13700 4143616 VDS402F13700 13,700 .5394 60 77 2,4 124 45 14 4148513 VDS202F13800 4143617 VDS402F13800 13,800 .5433 60 77 2,4 124 45 14 4148514 VDS202F13900 4143618 VDS402F13900 13,900 .5472 60 77 2,4 124 45 14 4148515 VDS202F14000 4143619 VDS402F14000 14,000 .5512 60 77 2,4 124 45 14 4148516 VDS202F14100 4143620 VDS402F14100 14,100 .5551 63 83 2,4 133 48 16 4148517 VDS202F14200 4143621 VDS402F14200 14,200 .5591 63 83 2,5 133 48 16 4148518 VDS202F14300 4143622 VDS402F14300 14,300 .5630 63 83 2,5 133 48 16 4148519 VDS202F14400 4143623 VDS402F14400 14,400 .5669 63 83 2,5 133 48 16 4148520 VDS202F14500 4143624 VDS402F14500 14,500 .5709 63 83 2,5 133 48 16 4148521 VDS202F14600 4143625 VDS402F14600 14,600 .5748 63 83 2,5 133 48 16 4148522 VDS202F14700 4143626 VDS402F14700 14,700 .5787 63 83 2,5 133 48 16 4148523 VDS202F14800 4143627 VDS402F14800 14,800 .5827 63 83 2,6 133 48 16 4148524 VDS202F14900 4143628 VDS402F14900 14,900 .5866 63 83 2,6 133 48 16 4148525 VDS202F15000 4143629 VDS402F15000 15,000 .5906 63 83 2,6 133 48 16 4148526 VDS202F15100 4143630 VDS402F15100 15,100 .5945 63 83 2,6 133 48 16 4148527 VDS202F15200 4143631 VDS402F15200 15,200 .5984 63 83 2,6 133 48 16 4148528 VDS202F15300 4143632 VDS402F15300 15,300 .6024 63 83 2,6 133 48 16 4148529 VDS202F15400 4143633 VDS402F15400 15,400 .6063 63 83 2,7 133 48 16 4148530 VDS202F15500 4143634 VDS402F15500 15,500 .6102 63 83 2,7 133 48 16 4148531 VDS202F15600 4143635 VDS402F15600 15,600 .6142 63 83 2,7 133 48 16 4148532 VDS202F15700 4143636 VDS402F15700 15,700 .6181 63 83 2,7 133 48 16 4148533 VDS202F15800 4143637 VDS402F15800 15,800 .6220 63 83 2,7 133 48 16 4148534 VDS202F15900 4143638 VDS402F15900 15,900 .6260 63 83 2,8 133 48 16 4148535 VDS202F16000 4143639 VDS402F16000 16,000 .6299 63 83 2,8 133 48 16 4148536 VDS202F16100 4143640 VDS402F16100 16,100 .6339 71 93 2,8 143 48 18 4148537 VDS202F16200 4143641 VDS402F16200 16,200 .6378 71 93 2,8 143 48 18 4148538 VDS202F16300 4143642 VDS402F16300 16,300 .6417 71 93 2,8 143 48 18 4148539 VDS202F16400 4143643 VDS402F16400 16,400 .6457 71 93 2,8 143 48 18 4148540 VDS202F16500 4143644 VDS402F16500 16,500 .6496 71 93 2,9 143 48 18 4148541 VDS202F16600 4143645 VDS402F16600 16,600 .6535 71 93 2,9 143 48 18 4148542 VDS202F16700 4143646 VDS402F16700 16,700 .6575 71 93 2,9 143 48 18 4148543 VDS202F16800 4143647 VDS402F16800 16,800 .6614 71 93 2,9 143 48 18 4148544 VDS202F16900 4143648 VDS402F16900 16,900 .6654 71 93 2,9 143 48 18 4148545 VDS202F17000 4143649 VDS402F17000 17,000 .6693 71 93 2,9 143 48 18 4148546 VDS202F17100 4143650 VDS402F17100 17,100 .6732 71 93 3,0 143 48 18 4148547 VDS202F17200 4143651 VDS402F17200 17,200 .6772 71 93 3,0 143 48 18 4148548 VDS202F17300 4143652 VDS402F17300 17,300 .6811 71 93 3,0 143 48 18 (continued) widia.com T37 Solid Carbide Drills
