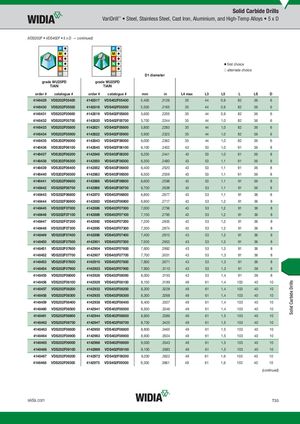

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (VDS202F • VDS402F • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d2eFW•UW2U5P25DPD VDgSr4a0d2eFW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4148429 VDS202F05400 4142817 VDS402F05400 5,400 .2126 35 44 0,9 82 36 6 4148430 VDS202F05500 4142818 VDS402F05500 5,500 .2165 35 44 0,9 82 36 6 4148431 VDS202F05600 4142819 VDS402F05600 5,600 .2205 35 44 0,9 82 36 6 4148432 VDS202F05700 4142820 VDS402F05700 5,700 .2244 35 44 1,0 82 36 6 4148433 VDS202F05800 4142821 VDS402F05800 5,800 .2283 35 44 1,0 82 36 6 4148434 VDS202F05900 4142822 VDS402F05900 5,900 .2323 35 44 1,0 82 36 6 4148435 VDS202F06000 4142843 VDS402F06000 6,000 .2362 35 44 1,0 82 36 6 4148436 VDS202F06100 4142845 VDS402F06100 6,100 .2402 43 53 1,0 91 36 8 4148437 VDS202F06200 4142848 VDS402F06200 6,200 .2441 43 53 1,0 91 36 8 4148438 VDS202F06300 4142850 VDS402F06300 6,300 .2480 43 53 1,1 91 36 8 4148439 VDS202F06400 4142852 VDS402F06400 6,400 .2520 43 53 1,1 91 36 8 4148440 VDS202F06500 4142863 VDS402F06500 6,500 .2559 43 53 1,1 91 36 8 4148441 VDS202F06600 4142866 VDS402F06600 6,600 .2598 43 53 1,1 91 36 8 4148442 VDS202F06700 4142868 VDS402F06700 6,700 .2638 43 53 1,1 91 36 8 4148443 VDS202F06800 4142870 VDS402F06800 6,800 .2677 43 53 1,1 91 36 8 4148444 VDS202F06900 4142883 VDS402F06900 6,900 .2717 43 53 1,2 91 36 8 4148445 VDS202F07000 4142886 VDS402F07000 7,000 .2756 43 53 1,2 91 36 8 4148446 VDS202F07100 4142889 VDS402F07100 7,100 .2795 43 53 1,2 91 36 8 4148447 VDS202F07200 4142892 VDS402F07200 7,200 .2835 43 53 1,2 91 36 8 4148448 VDS202F07300 4142895 VDS402F07300 7,300 .2874 43 53 1,2 91 36 8 4148449 VDS202F07400 4142898 VDS402F07400 7,400 .2913 43 53 1,3 91 36 8 4148450 VDS202F07500 4142901 VDS402F07500 7,500 .2953 43 53 1,3 91 36 8 4148451 VDS202F07600 4142904 VDS402F07600 7,600 .2992 43 53 1,3 91 36 8 4148452 VDS202F07700 4142907 VDS402F07700 7,700 .3031 43 53 1,3 91 36 8 4148453 VDS202F07800 4142910 VDS402F07800 7,800 .3071 43 53 1,3 91 36 8 4148454 VDS202F07900 4142923 VDS402F07900 7,900 .3110 43 53 1,3 91 36 8 4148455 VDS202F08000 4142926 VDS402F08000 8,000 .3150 43 53 1,4 91 36 8 4148456 VDS202F08100 4142929 VDS402F08100 8,100 .3189 49 61 1,4 103 40 10 4148457 VDS202F08200 4142932 VDS402F08200 8,200 .3228 49 61 1,4 103 40 10 4148458 VDS202F08300 4142935 VDS402F08300 8,300 .3268 49 61 1,4 103 40 10 4148459 VDS202F08400 4142938 VDS402F08400 8,400 .3307 49 61 1,4 103 40 10 4148460 VDS202F08500 4142941 VDS402F08500 8,500 .3346 49 61 1,4 103 40 10 4148461 VDS202F08600 4142944 VDS402F08600 8,600 .3386 49 61 1,5 103 40 10 4148462 VDS202F08700 4142947 VDS402F08700 8,700 .3425 49 61 1,5 103 40 10 4148463 VDS202F08800 4142950 VDS402F08800 8,800 .3465 49 61 1,5 103 40 10 4148464 VDS202F08900 4142963 VDS402F08900 8,900 .3504 49 61 1,5 103 40 10 4148465 VDS202F09000 4142966 VDS402F09000 9,000 .3543 49 61 1,5 103 40 10 4148466 VDS202F09100 4142969 VDS402F09100 9,100 .3583 49 61 1,5 103 40 10 4148467 VDS202F09200 4142972 VDS402F09200 9,200 .3622 49 61 1,6 103 40 10 4148468 VDS202F09300 4142975 VDS402F09300 9,300 .3661 49 61 1,6 103 40 10 (continued) widia.com T35 Solid Carbide Drills
