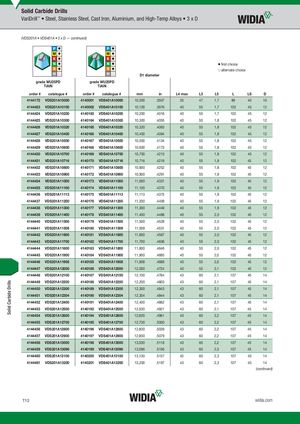

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 3 x D (VDS201A • VDS401A • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter VDgSr2a0d1eAW•UW2U5P25DPD VDgSr4a0d1eAW•UW2U5P25DPD TiAlN TiAlN order # catalogue # order # catalogue # mm in L4 max L3 L5 L LS D 4144172 VDS201A10000 4140001 VDS401A10000 10,000 .3937 35 47 1,7 89 40 10 4144423 VDS201A10100 4140002 VDS401A10100 10,100 .3976 40 55 1,7 102 45 12 4144424 VDS201A10200 4140163 VDS401A10200 10,200 .4016 40 55 1,7 102 45 12 4144425 VDS201A10300 4140164 VDS401A10300 10,300 .4055 40 55 1,8 102 45 12 4144426 VDS201A10320 4140165 VDS401A10320 10,320 .4063 40 55 1,8 102 45 12 4144427 VDS201A10400 4140166 VDS401A10400 10,400 .4094 40 55 1,8 102 45 12 4144428 VDS201A10500 4140167 VDS401A10500 10,500 .4134 40 55 1,8 102 45 12 4144429 VDS201A10600 4140168 VDS401A10600 10,600 .4173 40 55 1,8 102 45 12 4144430 VDS201A10700 4140169 VDS401A10700 10,700 .4213 40 55 1,8 102 45 12 4144431 VDS201A10716 4140170 VDS401A10716 10,716 .4219 40 55 1,8 102 45 12 4144432 VDS201A10800 4140171 VDS401A10800 10,800 .4252 40 55 1,8 102 45 12 4144433 VDS201A10900 4140172 VDS401A10900 10,900 .4291 40 55 1,9 102 45 12 4144434 VDS201A11000 4140173 VDS401A11000 11,000 .4331 40 55 1,9 102 45 12 4144435 VDS201A11100 4140174 VDS401A11100 11,100 .4370 40 55 1,9 102 45 12 4144436 VDS201A11113 4140175 VDS401A11113 11,113 .4375 40 55 1,9 102 45 12 4144437 VDS201A11200 4140176 VDS401A11200 11,200 .4409 40 55 1,9 102 45 12 4144438 VDS201A11300 4140177 VDS401A11300 11,300 .4449 40 55 1,9 102 45 12 4144439 VDS201A11400 4140178 VDS401A11400 11,400 .4488 40 55 2,0 102 45 12 4144440 VDS201A11500 4140179 VDS401A11500 11,500 .4528 40 55 2,0 102 45 12 4144441 VDS201A11509 4140180 VDS401A11509 11,509 .4531 40 55 2,0 102 45 12 4144442 VDS201A11600 4140181 VDS401A11600 11,600 .4567 40 55 2,0 102 45 12 4144443 VDS201A11700 4140182 VDS401A11700 11,700 .4606 40 55 2,0 102 45 12 4144444 VDS201A11800 4140183 VDS401A11800 11,800 .4646 40 55 2,0 102 45 12 4144445 VDS201A11900 4140184 VDS401A11900 11,900 .4685 40 55 2,0 102 45 12 4144446 VDS201A11908 4140185 VDS401A11908 11,908 .4688 40 55 2,0 102 45 12 4144447 VDS201A12000 4140186 VDS401A12000 12,000 .4724 40 55 2,1 102 45 12 4144448 VDS201A12100 4140187 VDS401A12100 12,100 .4764 43 60 2,1 107 45 14 4144449 VDS201A12200 4140188 VDS401A12200 12,200 .4803 43 60 2,1 107 45 14 4144450 VDS201A12300 4140189 VDS401A12300 12,300 .4843 43 60 2,1 107 45 14 4144451 VDS201A12304 4140190 VDS401A12304 12,304 .4844 43 60 2,1 107 45 14 4144452 VDS201A12400 4140191 VDS401A12400 12,400 .4882 43 60 2,1 107 45 14 4144453 VDS201A12500 4140192 VDS401A12500 12,500 .4921 43 60 2,1 107 45 14 4144454 VDS201A12600 4140194 VDS401A12600 12,600 .4961 43 60 2,2 107 45 14 4144455 VDS201A12700 4140195 VDS401A12700 12,700 .5000 43 60 2,2 107 45 14 4144456 VDS201A12800 4140196 VDS401A12800 12,800 .5039 43 60 2,2 107 45 14 4144457 VDS201A12900 4140197 VDS401A12900 12,900 .5079 43 60 2,2 107 45 14 4144458 VDS201A13000 4140198 VDS401A13000 13,000 .5118 43 60 2,2 107 45 14 4144459 VDS201A13096 4140199 VDS401A13096 13,096 .5156 43 60 2,3 107 45 14 4144460 VDS201A13100 4140200 VDS401A13100 13,100 .5157 43 60 2,3 107 45 14 4144461 VDS201A13200 4140201 VDS401A13200 13,200 .5197 43 60 2,3 107 45 14 (continued) T12 widia.com Solid Carbide Drills
