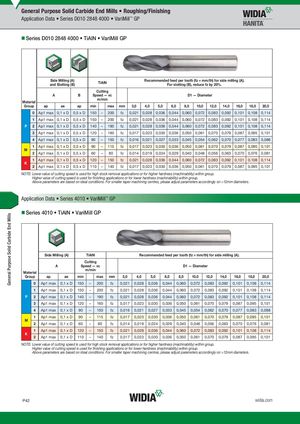

General Purpose Solid Carbide End Mills • Roughing/Finishing Application Data • Series D010 2848 4000 • VariMill™ GP „Series D010 2848 4000 • TiAlN • VariMill GP Side Milling (A)and Slotting (B)TiAlN Recommended feed per tooth (fz = mm/th) for side milling (A).For slotting (B), reduce fz by 20%. Cutting A B Speed — vc D1 — Diameter m/min Material Group ap ae ap min max mm 3,0 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 0 Ap1 max 0,1 x D 0,5 x D 150 – 200 fz 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 1 Ap1 max 0,1 x D 0,5 x D 150 – 200 fz 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 P 2 Ap1 max 0,1 x D 0,5 x D 140 – 190 fz 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 3 Ap1 max 0,1 x D 0,5 x D 120 – 160 fz 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 4 Ap1 max 0,1 x D 0,5 x D 90 – 150 fz 0,016 0,021 0,027 0,033 0,045 0,054 0,062 0,070 0,077 0,083 0,088 1 Ap1 max 0,1 x D 0,5 x D 90 – 115 fz 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 M 2 Ap1 max 0,1 x D 0,5 x D 60 – 80 fz 0,014 0,019 0,024 0,029 0,040 0,048 0,056 0,063 0,070 0,076 0,081 1 Ap1 max 0,1 x D 0,5 x D 120 – 150 fz 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 K 2 Ap1 max 0,1 x D 0,5 x D 110 – 140 fz 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters. Application Data • Series 4010 • VariMill™ GP „Series 4010 • TiAlN • VariMill GP Side Milling (A) TiAlN Recommended feed per tooth (fz = mm/th) for side milling (A). Cutting A Speed — vc D1 — Diameter m/min Material Group ap ae min max mm 3,0 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 0 Ap1 max 0,1 x D 150 – 200 fz 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 1 Ap1 max 0,1 x D 150 – 200 fz 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 P 2 Ap1 max 0,1 x D 140 – 190 fz 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 3 Ap1 max 0,1 x D 120 – 160 fz 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 4 Ap1 max 0,1 x D 90 – 150 fz 0,016 0,021 0,027 0,033 0,045 0,054 0,062 0,070 0,077 0,083 0,088 1 Ap1 max 0,1 x D 90 – 115 fz 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 M 2 Ap1 max 0,1 x D 60 – 80 fz 0,014 0,019 0,024 0,029 0,040 0,048 0,056 0,063 0,070 0,076 0,081 1 Ap1 max 0,1 x D 120 – 150 fz 0,021 0,028 0,036 0,044 0,060 0,072 0,083 0,092 0,101 0,108 0,114 K 2 Ap1 max 0,1 x D 110 – 140 fz 0,017 0,023 0,030 0,036 0,050 0,061 0,070 0,079 0,087 0,095 0,101 NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters. P42 widia.com General Purpose Solid Carbide End Mills
