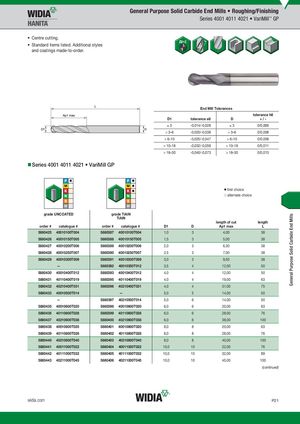

General Purpose Solid Carbide End Mills • Roughing/Finishing Series 4001 4011 4021 • VariMill™ GP • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series 4001 4011 4021 • VariMill GP ⅷ first choice ࠗ alternate choice grUaNdeCOUNATCEODAT- E..D gradTeiATlNiAlN TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L 5880425 40010100T004 5880387 40010100T004 1,0 3 4,00 38 5880426 40010150T005 5880388 40010150T005 1,5 3 5,00 38 5880427 40010200T006 5880389 40010200T006 2,0 3 6,30 38 5880428 40010250T007 5880390 40010250T007 2,5 3 7,00 38 5880429 40010300T009 5880391 40010300T009 3,0 3 9,50 38 — 5880392 40010350T012 3,5 4 12,00 50 5880430 40010400T012 5880393 40010400T012 4,0 4 12,00 50 5880431 40110400T019 5880395 40110400T019 4,0 4 19,00 63 5880432 40210400T031 5880396 40210400T031 4,0 4 31,00 75 5880433 40010500T014 — 5,0 5 14,00 50 — 5880397 40210500T014 5,0 6 14,00 50 5880435 40010600T020 5880398 40010600T020 6,0 6 20,00 63 5880436 40110600T028 5880399 40110600T028 6,0 6 28,00 76 5880437 40210600T038 5880400 40210600T038 6,0 6 38,00 100 5880438 40010800T020 5880401 40010800T020 8,0 8 20,00 63 5880439 40110800T028 5880402 40110800T028 8,0 8 28,00 76 5880440 40210800T040 5880403 40210800T040 8,0 8 40,00 100 5880441 40011000T022 5880404 40011000T022 10,0 10 22,00 76 5880442 40111000T032 5880405 40111000T032 10,0 10 32,00 89 5880443 40211000T045 5880406 40211000T045 10,0 10 45,00 100 (continued) widia.com P21 General Purpose Solid Carbide End Mills
