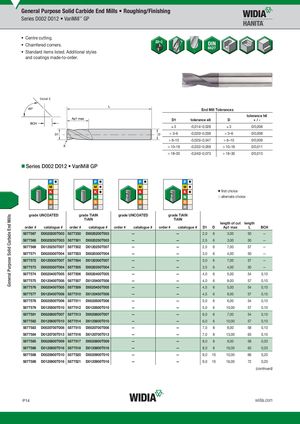

General Purpose Solid Carbide End Mills • Roughing/Finishing Series D002 D012 • VariMill™ GP • Centre cutting. • Chamfered corners. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 „Series D002 D012 • VariMill GP ⅷ first choice ࠗ alternate choice graUdeNCUONCATOEADTED graTdieATlNiAlN graUdeNCUONCATOEADTED graTdieATlNiAlN TiAlN TiAlN length of cut length order # catalogue # order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L BCH 5877567 D0020200T003 5877330 D0020200T003 — — 2,0 6 3,00 50 — 5877568 D0020250T003 5877501 D0020250T003 — — 2,5 6 3,00 50 — 5877569 D0120250T007 5877502 D0120250T007 — — 2,5 6 7,00 57 — 5877571 D0020300T004 5877503 D0020300T004 — — 3,0 6 4,00 50 — 5877572 D0120300T007 5877504 D0120300T007 — — 3,0 6 7,00 57 — 5877573 D0020350T004 5877505 D0020350T004 — — 3,5 6 4,00 50 — 5877574 D0020400T005 5877506 D0020400T005 — — 4,0 6 5,00 54 0,10 5877575 D0120400T008 5877507 D0120400T008 — — 4,0 6 8,00 57 0,10 5877576 D0020450T005 5877509 D0020450T005 — — 4,5 6 5,00 54 0,10 5877577 D0120450T008 5877510 D0120450T008 — — 4,5 6 8,00 57 0,10 5877578 D0020500T006 5877511 D0020500T006 — — 5,0 6 6,00 54 0,10 5877579 D0120500T010 5877512 D0120500T010 — — 5,0 6 10,00 57 0,10 5877581 D0020600T007 5877513 D0020600T007 — — 6,0 6 7,00 54 0,10 5877582 D0120600T010 5877514 D0120600T010 — — 6,0 6 10,00 57 0,10 5877583 D0020700T008 5877515 D0020700T008 — — 7,0 8 8,00 58 0,10 5877584 D0120700T013 5877516 D0120700T013 — — 7,0 8 13,00 63 0,10 5877585 D0020800T009 5877517 D0020800T009 — — 8,0 8 9,00 58 0,20 5877586 D0120800T016 5877518 D0120800T016 — — 8,0 8 16,00 63 0,20 5877588 D0020900T010 5877520 D0020900T010 — — 9,0 10 10,00 66 0,20 5877589 D0120900T016 5877521 D0120900T016 — — 9,0 10 16,00 72 0,20 (continued) P14 widia.com General Purpose Solid Carbide End Mills
