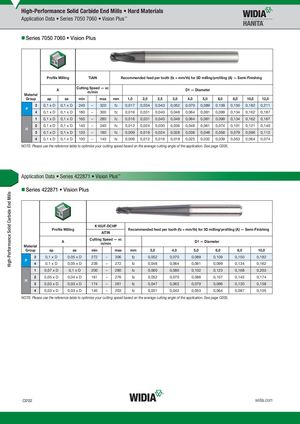

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Application Data • Series 7050 7060 • Vision Plus™ „Series 7050 7060 • Vision Plus Profile Milling TiAlN Recommended feed per tooth (fz = mm/th) for 3D milling/profiling (A) — Semi-Finishing A Cutting Speed — vcm/min D1 — Diameter Material Group ap ae min max mm 1,0 2,0 2,5 3,0 4,0 5,0 6,0 8,0 10,0 12,0 3 0,1 x D 0,1 x D 240 – 320 fz 0,017 0,034 0,043 0,052 0,070 0,089 0,109 0,150 0,182 0,211 P 4 0,1 x D 0,1 x D 180 – 300 fz 0,016 0,031 0,040 0,048 0,064 0,081 0,099 0,134 0,162 0,187 1 0,1 x D 0,1 x D 160 – 280 fz 0,016 0,031 0,040 0,048 0,064 0,081 0,099 0,134 0,162 0,187 2 0,1 x D 0,1 x D 140 – 240 fz 0,012 0,024 0,030 0,036 0,048 0,061 0,074 0,101 0,121 0,140 H 3 0,1 x D 0,1 x D 120 – 180 fz 0,009 0,019 0,024 0,028 0,038 0,048 0,058 0,079 0,096 0,112 4 0,1 x D 0,1 x D 100 – 140 fz 0,006 0,012 0,016 0,019 0,025 0,032 0,039 0,053 0,064 0,074 NOTE: Please use the reference table to optimise your cutting speed based on the average cutting angle of the application. See page O205. Application Data • Series 422871 • Vision Plus™ „Series 422871 • Vision Plus K10UF-DCHP Profile Milling Recommended feed per tooth (fz = mm/th) for 3D milling/profiling (A) — Semi-Finishing AlTiN A Cutting Speed — vcm/min D1 — Diameter Material Group ap ae min max mm 3,0 4,0 5,0 6,0 8,0 10,0 3 0,1 x D 0,05 x D 272 – 306 fz 0,052 0,070 0,089 0,109 0,150 0,182 P 4 0,1 x D 0,05 x D 238 – 272 fz 0,048 0,064 0,081 0,099 0,134 0,162 1 0,07 x D 0,1 x D 200 – 280 fz 0,060 0,080 0,102 0,123 0,168 0,203 2 0,05 x D 0,04 x D 161 – 276 fz 0,052 0,070 0,088 0,107 0,145 0,174 H 3 0,03 x D 0,03 x D 174 – 261 fz 0,047 0,063 0,079 0,096 0,130 0,158 4 0,03 x D 0,03 x D 145 – 203 fz 0,031 0,042 0,053 0,064 0,087 0,105 NOTE: Please use the reference table to optimise your cutting speed based on the average cutting angle of the application. See page O205. O202 widia.com
