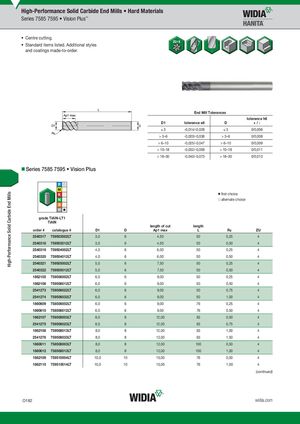

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 7585 7595 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 Series 7585 7595 • Vision Plus ⅷ first choice ࠗ alternate choice graTdieAlTNiA-lLNT-L1T1 TiAlN length of cut length order # catalogue # D1 D Ap1 max L R¡ ZU 2540317 759503002LT 3,0 6 4,50 50 0,25 4 2540318 759503012LT 3,0 6 4,50 50 0,50 4 2540319 759504002LT 4,0 6 6,00 50 0,25 4 2540320 759504012LT 4,0 6 6,00 50 0,50 4 2540321 759505002LT 5,0 6 7,50 50 0,25 4 2540322 759505012LT 5,0 6 7,50 50 0,50 4 1862105 759506002LT 6,0 6 9,00 50 0,25 4 1862106 759506012LT 6,0 6 9,00 50 0,50 4 2541273 759506022LT 6,0 6 9,00 50 0,75 4 2541274 759506032LT 6,0 6 9,00 50 1,00 4 1860609 758506002LT 6,0 6 9,00 76 0,25 4 1860610 758506012LT 6,0 6 9,00 76 0,50 4 1862107 759508003LT 8,0 8 12,00 63 0,50 4 2541275 759508023LT 8,0 8 12,00 63 0,75 4 1862108 759508013LT 8,0 8 12,00 63 1,00 4 2541276 759508033LT 8,0 8 12,00 63 1,50 4 1860611 758508003LT 8,0 8 12,00 100 0,50 4 1860612 758508013LT 8,0 8 12,00 100 1,00 4 1862109 759510004LT 10,0 10 15,00 76 0,50 4 1862110 759510014LT 10,0 10 15,00 76 1,00 4 (continued) O182 widia.com
