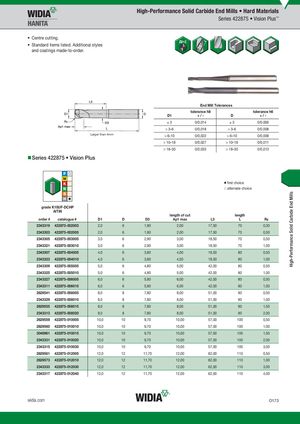

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 422875 • Vision Plus™ • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h8 tolerance h6 D1 +/- D +/- )3 0/0,014 )3 0/0,006 > 3–6 0/0,018 > 3–6 0/0,008 Larger than 4mm > 6–10 0/0,022 > 6–10 0/0,009 > 10–18 0/0,027 > 10–18 0/0,011 > 18–30 0/0,033 > 18–30 0/0,013 „Series 422875 • Vision Plus ⅷ first choice ࠗ alternate choice graKde10KU1F0-UDFC-HDPCHP AlTiN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L R¡ 2343319 422875-002003 2,0 6 1,90 2,00 17,50 70 0,30 2343303 422875-002005 2,0 6 1,90 2,00 17,50 70 0,50 2343305 422875-003005 3,0 6 2,90 3,00 18,50 70 0,50 2343321 422875-003010 3,0 6 2,90 3,00 18,50 70 1,00 2343307 422875-004005 4,0 6 3,80 4,00 19,50 80 0,50 2343323 422875-004010 4,0 6 3,80 4,00 19,50 80 1,00 2343309 422875-005005 5,0 6 4,80 5,00 42,00 80 0,50 2343325 422875-005010 5,0 6 4,80 5,00 42,00 80 1,00 2343327 422875-006005 6,0 6 5,80 6,00 42,00 80 0,50 2343311 422875-006010 6,0 6 5,80 6,00 42,00 80 1,00 2629541 422875-008005 8,0 8 7,80 8,00 51,00 90 0,50 2343329 422875-008010 8,0 8 7,80 8,00 51,00 90 1,00 2629555 422875-008015 8,0 8 7,80 8,00 51,00 90 1,50 2343313 422875-008020 8,0 8 7,80 8,00 51,00 90 2,00 2629559 422875-010005 10,0 10 9,70 10,00 57,00 100 0,50 2629560 422875-010010 10,0 10 9,70 10,00 57,00 100 1,00 3048961 422875-010015 10,0 10 9,70 10,00 57,00 100 1,50 2343331 422875-010020 10,0 10 9,70 10,00 57,00 100 2,00 2343315 422875-010030 10,0 10 9,70 10,00 57,00 100 3,00 2629561 422875-012005 12,0 12 11,70 12,00 62,00 110 0,50 2629573 422875-012010 12,0 12 11,70 12,00 62,00 110 1,00 2343333 422875-012030 12,0 12 11,70 12,00 62,00 110 3,00 2343317 422875-012040 12,0 12 11,70 12,00 62,00 110 4,00 widia.com O173
