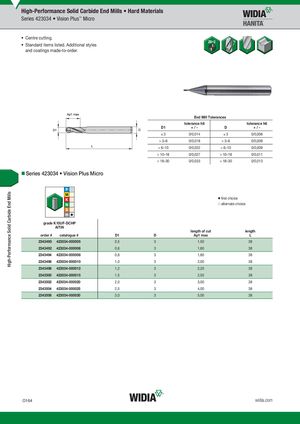

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Hard Materials Series 423034 • Vision Plus™ Micro • Centre cutting. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h8 tolerance h6 D1 +/- D +/- )3 0/0,014 )3 0/0,006 > 3–6 0/0,018 > 3–6 0/0,008 > 6–10 0/0,022 > 6–10 0/0,009 > 10–18 0/0,027 > 10–18 0/0,011 > 18–30 0/0,033 > 18–30 0/0,013 „Series 423034 • Vision Plus Micro ⅷ first choice ࠗ alternate choice gradKe10KU1F0-UDFC-DHCPHP AlTiN length of cut length order # catalogue # D1 D Ap1 max L 2343490 423034-000005 0,5 3 1,50 38 2343492 423034-000006 0,6 3 1,60 38 2343494 423034-000008 0,8 3 1,80 38 2343496 423034-000010 1,0 3 2,00 38 2343498 423034-000012 1,2 3 2,20 38 2343500 423034-000015 1,5 3 2,50 38 2343502 423034-000020 2,0 3 3,00 38 2343504 423034-000025 2,5 3 4,00 38 2343506 423034-000030 3,0 3 5,00 38 O164 widia.com
