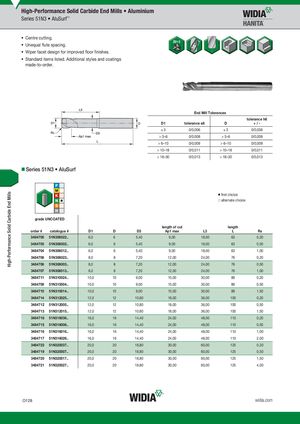

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Aluminium Series 51N3 • AluSurf™ • Centre cutting. • Unequal flute spacing. • Wiper facet design for improved floor finishes. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 0/0,006 )3 0/0,006 > 3–6 0/0,008 > 3–6 0/0,008 > 6–10 0/0,009 > 6–10 0/0,009 > 10–18 0/0,011 > 10–18 0/0,011 > 18–30 0/0,013 > 18–30 0/0,013 „Series 51N3 • AluSurf ⅷ first choice ࠗ alternate choice graUdeNCUONACTOEADTED length of cut length order # catalogue # D1 D D3 Ap1 max L3 L R¡ 3484705 51N306022.. 6,0 6 5,40 9,00 18,00 63 0,20 3484703 51N306002.. 6,0 6 5,40 9,00 18,00 63 0,50 3484704 51N306012.. 6,0 6 5,40 9,00 18,00 63 1,00 3484708 51N308023.. 8,0 8 7,20 12,00 24,00 76 0,20 3484706 51N308003.. 8,0 8 7,20 12,00 24,00 76 0,50 3484707 51N308013.. 8,0 8 7,20 12,00 24,00 76 1,00 3484711 51N310024.. 10,0 10 9,00 15,00 30,00 89 0,20 3484709 51N310004.. 10,0 10 9,00 15,00 30,00 89 0,50 3484710 51N310014.. 10,0 10 9,00 15,00 30,00 89 1,50 3484714 51N312025.. 12,0 12 10,80 18,00 36,00 100 0,20 3484712 51N312005.. 12,0 12 10,80 18,00 36,00 100 0,50 3484713 51N312015.. 12,0 12 10,80 18,00 36,00 100 1,50 3484718 51N316036.. 16,0 16 14,40 24,00 48,00 110 0,20 3484715 51N316006.. 16,0 16 14,40 24,00 48,00 110 0,50 3484716 51N316016.. 16,0 16 14,40 24,00 48,00 110 1,00 3484717 51N316026.. 16,0 16 14,40 24,00 48,00 110 2,00 3484722 51N320037.. 20,0 20 18,80 30,00 60,00 125 0,20 3484719 51N320007.. 20,0 20 18,80 30,00 60,00 125 0,50 3484720 51N320017.. 20,0 20 18,80 30,00 60,00 125 1,50 3484721 51N320027.. 20,0 20 18,80 30,00 60,00 125 4,00 O128 widia.com
