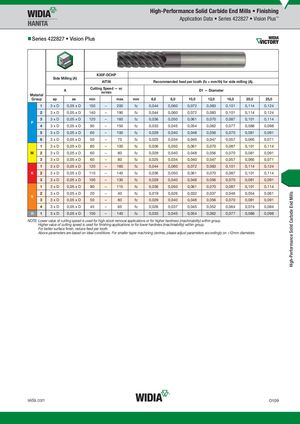

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Application Data • Series 422827 • Vision Plus™ „Series 422827 • Vision Plus K30F-DCHP Side Milling (A) AlTiN Recommended feed per tooth (fz = mm/th) for side milling (A). A Cutting Speed — vcm/min D1 — Diameter Material Group ap ae min max mm 6,0 8,0 10,0 12,0 16,0 20,0 25,0 1 3xD 0,05 x D 150 – 200 fz 0,044 0,060 0,072 0,083 0,101 0,114 0,124 2 3xD 0,05 x D 140 – 190 fz 0,044 0,060 0,072 0,083 0,101 0,114 0,124 3 3xD 0,05 x D 120 – 160 fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 P 4 3xD 0,05 x D 90 – 150 fz 0,033 0,045 0,054 0,062 0,077 0,088 0,098 5 3xD 0,05 x D 60 – 100 fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 6 3xD 0,05 x D 50 – 75 fz 0,025 0,034 0,040 0,047 0,057 0,065 0,071 1 3xD 0,05 x D 80 – 100 fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 M 2 3xD 0,05 x D 60 – 80 fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 3 3xD 0,05 x D 60 – 80 fz 0,025 0,034 0,040 0,047 0,057 0,065 0,071 1 3xD 0,05 x D 120 – 160 fz 0,044 0,060 0,072 0,083 0,101 0,114 0,124 K 2 3xD 0,05 x D 110 – 140 fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 3 3xD 0,05 x D 100 – 130 fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 1 3xD 0,05 x D 90 – 115 fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 2 3xD 0,05 x D 20 – 40 fz 0,019 0,026 0,032 0,037 0,046 0,054 0,061 S 3 3xD 0,05 x D 50 – 80 fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 4 3xD 0,05 x D 45 – 65 fz 0,026 0,037 0,045 0,052 0,064 0,074 0,084 H 1 3xD 0,05 x D 100 – 140 fz 0,033 0,045 0,054 0,062 0,077 0,088 0,098 NOTE: Lower value of cutting speed is used for high-stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. For better surface finish, reduce feed per tooth. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters. widia.com O109
