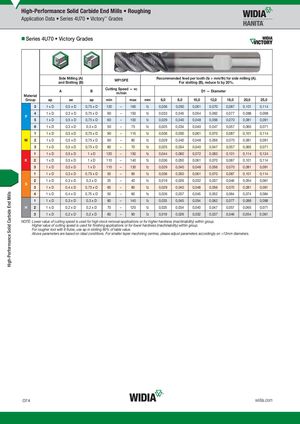

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Application Data • Series 4U70 • Victory™ Grades „Series 4U70 • Victory Grades Side Milling (A)and Slotting (B) WP15PE Recommended feed per tooth (fz = mm/th) for side milling (A).For slotting (B), reduce fz by 20%. A B Cutting Speed — vcm/min D1 — Diameter Material Group ap ae ap min max mm 6,0 8,0 10,0 12,0 16,0 20,0 25,0 3 1xD 0,5 x D 0,75 x D 120 – 160 fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 4 1xD 0,3 x D 0,75 x D 90 – 150 fz 0,033 0,045 0,054 0,062 0,077 0,088 0,098 P 5 1xD 0,5 x D 0,75 x D 60 – 100 fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 6 1xD 0,3 x D 0,3 x D 50 – 75 fz 0,025 0,034 0,040 0,047 0,057 0,065 0,071 1 1xD 0,5 x D 0,75 x D 90 – 115 fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 M 2 1xD 0,5 x D 0,75 x D 60 – 80 fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 3 1xD 0,5 x D 0,75 x D 60 – 70 fz 0,025 0,034 0,040 0,047 0,057 0,065 0,071 1 1xD 0,5 x D 1xD 120 – 150 fz 0,044 0,060 0,072 0,083 0,101 0,114 0,124 K 2 1xD 0,5 x D 1xD 110 – 140 fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 3 1xD 0,5 x D 1xD 110 – 130 fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 1 1xD 0,3 x D 0,75 x D 50 – 90 fz 0,036 0,050 0,061 0,070 0,087 0,101 0,114 2 1xD 0,3 x D 0,3 x D 25 – 40 fz 0,019 0,026 0,032 0,037 0,046 0,054 0,061 S 3 1xD 0,4 x D 0,75 x D 60 – 80 fz 0,029 0,040 0,048 0,056 0,070 0,081 0,091 4 1xD 0,4 x D 0,75 x D 50 – 60 fz 0,026 0,037 0,045 0,052 0,064 0,074 0,084 1 1xD 0,3 x D 0,3 x D 80 – 140 fz 0,033 0,045 0,054 0,062 0,077 0,088 0,098 H 2 1xD 0,2 x D 0,2 x D 70 – 120 fz 0,025 0,034 0,040 0,047 0,057 0,065 0,071 3 1xD 0,2 x D 0,2 x D 60 – 90 fz 0,019 0,026 0,032 0,037 0,046 0,054 0,061 NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. For rougher tool with 6 flutes, use ap in slotting 60% of table value. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters. O74 widia.com
