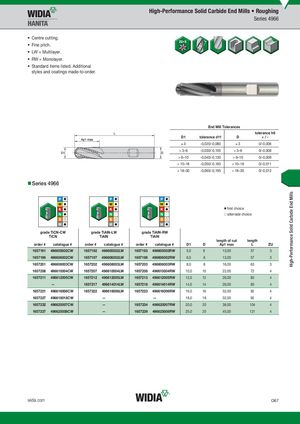

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 4966 • Centre cutting. • Fine pitch. • LW = Multilayer. • RW = Monolayer. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/-0,006 > 3–6 -0,030/-0,105 > 3–6 0/-0,008 > 6–10 -0,040/-0,130 > 6–10 0/-0,009 > 10–18 -0,050/-0,160 > 10–18 0/-0,011 > 18–30 -0,065/-0,195 > 18–30 0/-0,013 „Series 4966 ⅷ first choice ࠗ alternate choice graTdIeCTNi-CCNW-CW graTdieATlNiA-LlNW-LW graTdieATlNiA-RlNW-RW TiCN TiAlN TiAlN length of cut length order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max L ZU 1657191 496605002CW 1657192 496605002LW 1657193 496605002RW 5,0 6 13,00 57 3 1657196 496606002CW 1657197 496606002LW 1657198 496606002RW 6,0 6 13,00 57 3 1657201 496608003CW 1657202 496608003LW 1657203 496608003RW 8,0 8 16,00 63 3 1657206 496610004CW 1657207 496610004LW 1657208 496610004RW 10,0 10 22,00 72 4 1657211 496612005CW 1657212 496612005LW 1657213 496612005RW 12,0 12 26,00 83 4 — 1657217 496614014LW 1657218 496614014RW 14,0 14 26,00 83 4 1657221 496616006CW 1657222 496616006LW 1657223 496616006RW 16,0 16 32,00 92 4 1657227 496618018CW — — 18,0 18 32,00 92 4 1657232 496620007CW — 1657234 496620007RW 20,0 20 38,00 104 4 1657237 496625008CW — 1657239 496625008RW 25,0 25 45,00 121 4 widia.com O67
