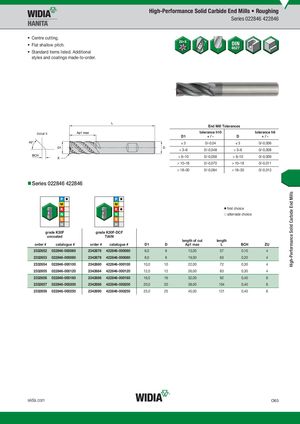

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 022846 422846 • Centre cutting. • Flat shallow pitch. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances Detail X tolerance h10 tolerance h6 D1 +/- D +/- )3 0/-0,04 )3 0/-0,006 > 3–6 0/-0,048 > 3–6 0/-0,008 > 6–10 0/-0,058 > 6–10 0/-0,009 > 10–18 0/-0,070 > 10–18 0/-0,011 > 18–30 0/-0,084 > 18–30 0/-0,013 Series 022846 422846 ⅷ first choice ࠗ alternate choice graKde30KF30F graKde30KF3-0DFC-FDCF uncoated TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH ZU 2332652 022846-000060 2342676 422846-000060 6,0 6 13,00 57 0,10 4 2332653 022846-000080 2342678 422846-000080 8,0 8 19,00 63 0,20 4 2332654 022846-000100 2342680 422846-000100 10,0 10 22,00 72 0,30 4 2332655 022846-000120 2342684 422846-000120 12,0 12 26,00 83 0,30 4 2332656 022846-000160 2342686 422846-000160 16,0 16 32,00 92 0,40 6 2332657 022846-000200 2342688 422846-000200 20,0 20 38,00 104 0,40 6 2332658 022846-000250 2342690 422846-000250 25,0 25 45,00 121 0,40 6 widia.com O65
